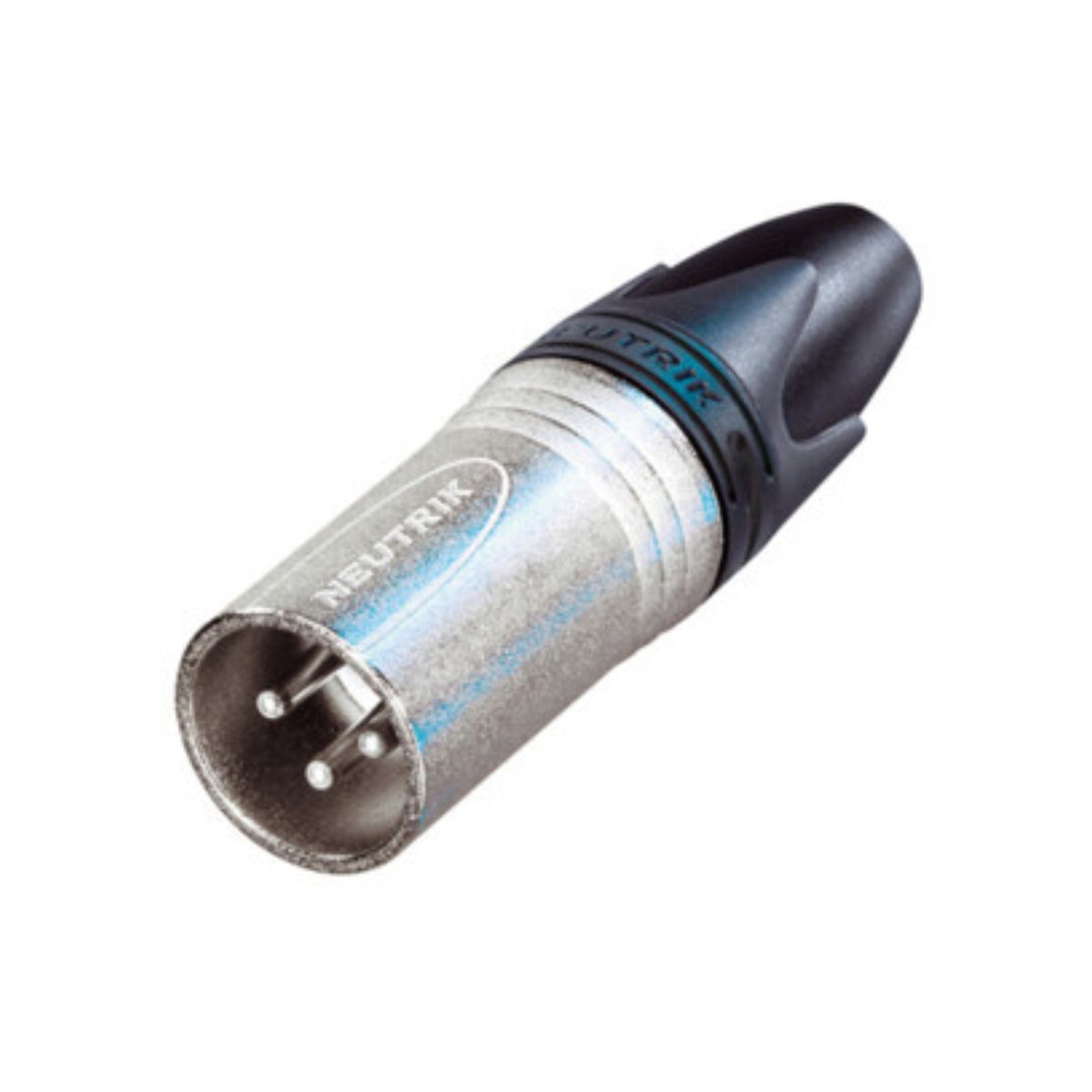

NC3MXX
Highlights
- Male connector with improved locking recess without a "window", more stringent housing increases durability
- Improved chuck-type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection against cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, long-lasting and dependable
- Internal thread on shell is well protected against any damage

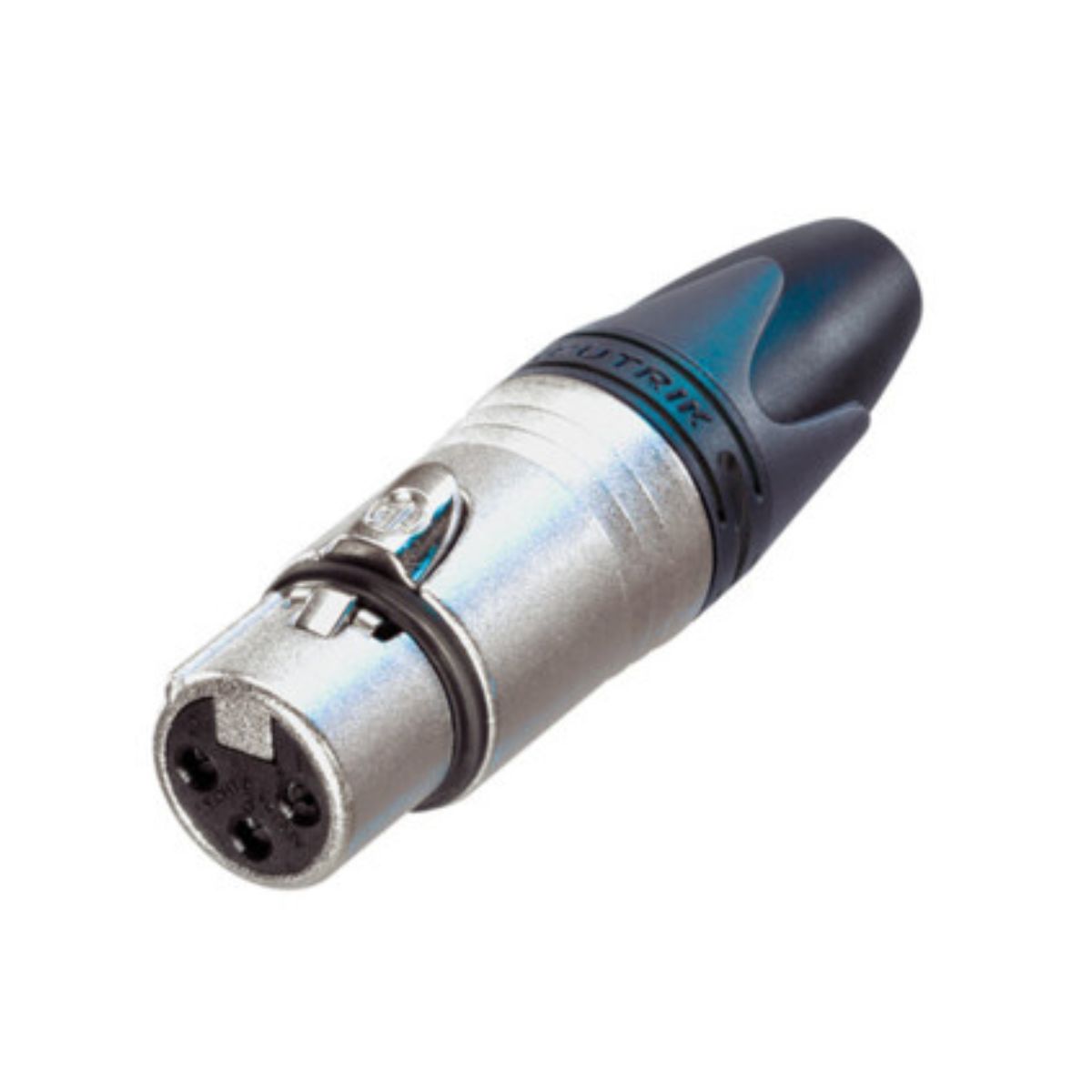

NC3FXX
Highlights
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder from running into the contact mating area
- Female connector with an improved solid metal latch that is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck-type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, long-lasting and dependable
- Internal thread on shell is well protected against any damage

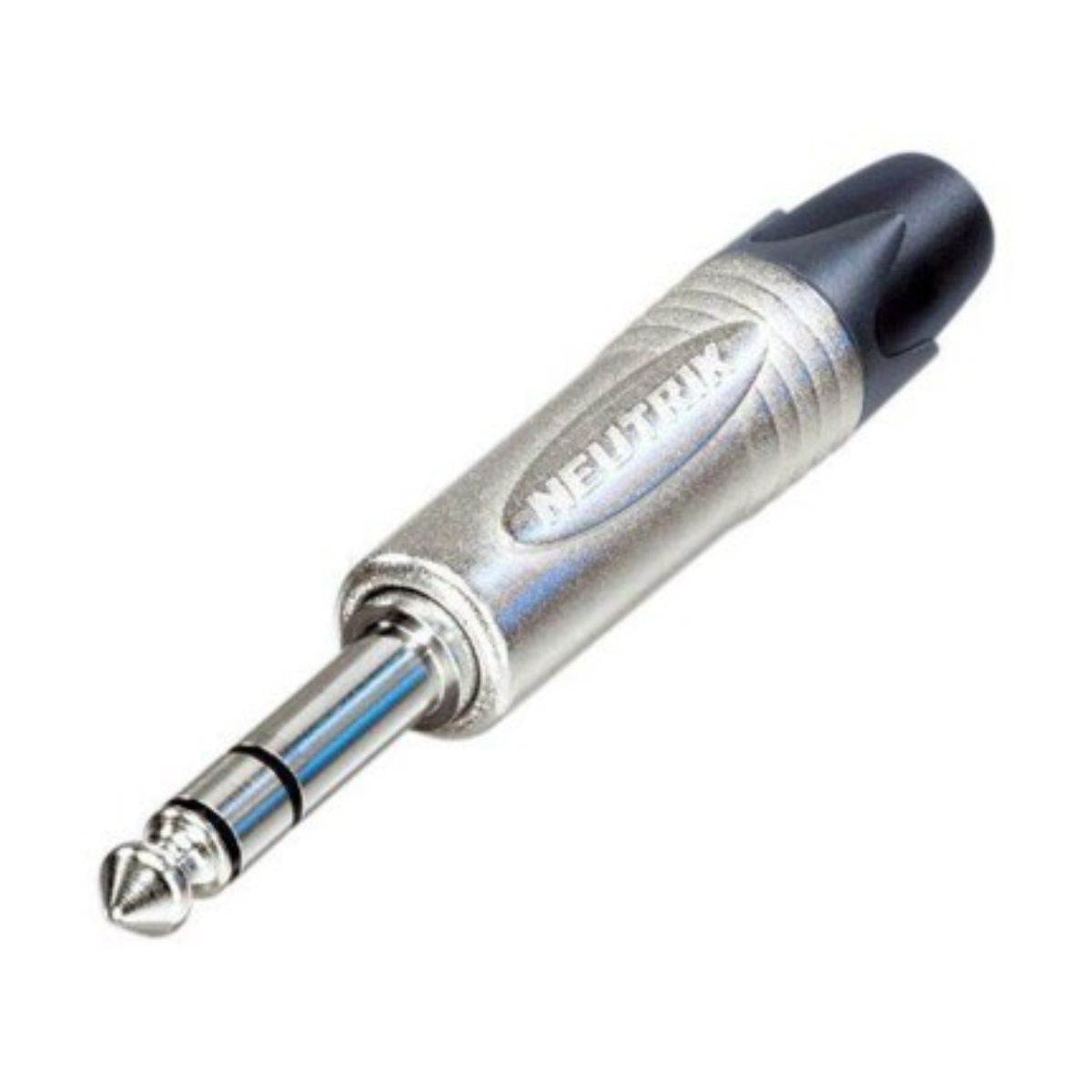

NP3X
Highlights
- Extra-slim 1/4" plug for highest packing density
- Robust die-cast shell in a stylish design
- Proven chuck-type strain relief for reliable cable retention
- Sleek design for best handling convenience
- Precision-machined one-piece contacts - avoid hooking up the tip contact

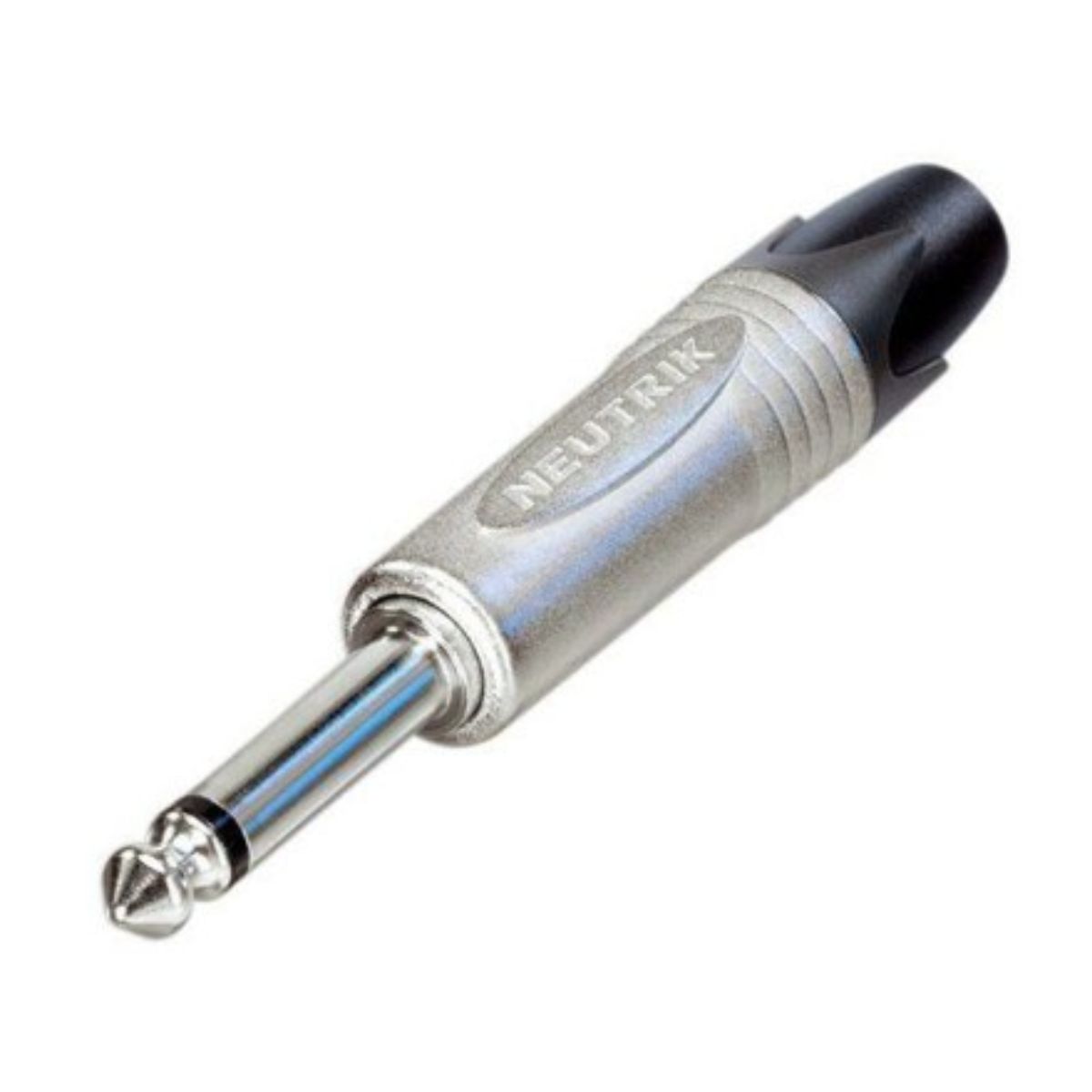

NP2X
Highlights
- Extra-slim 1/4" plug for highest packing density
- Robust die-cast shell in a stylish design
- Proven chuck-type strain relief for reliable cable retention
- Sleek design for best handling convenience
- Precision-machined one-piece contacts - avoid hooking up the tip contact
