Wall Plates Product Listing Details

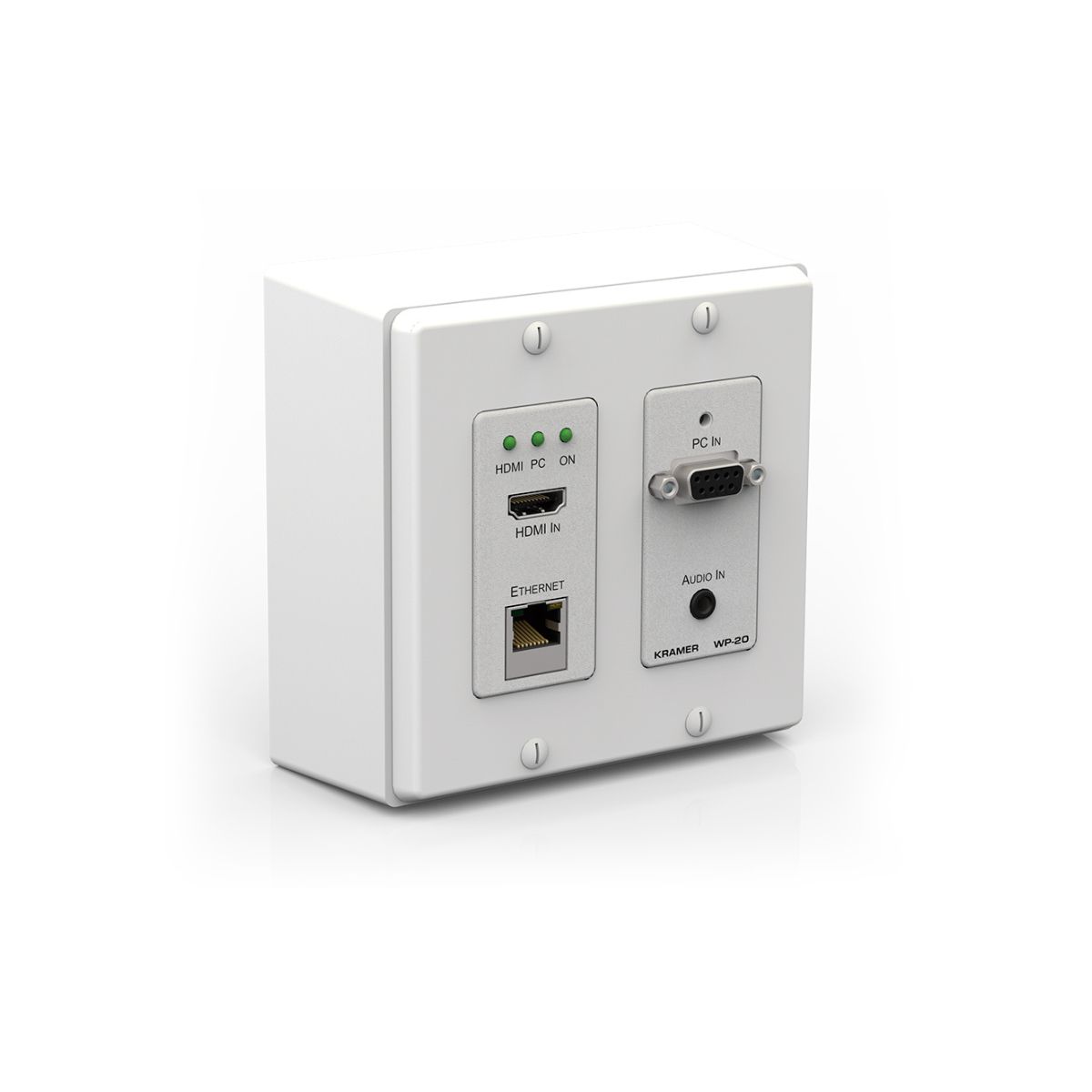

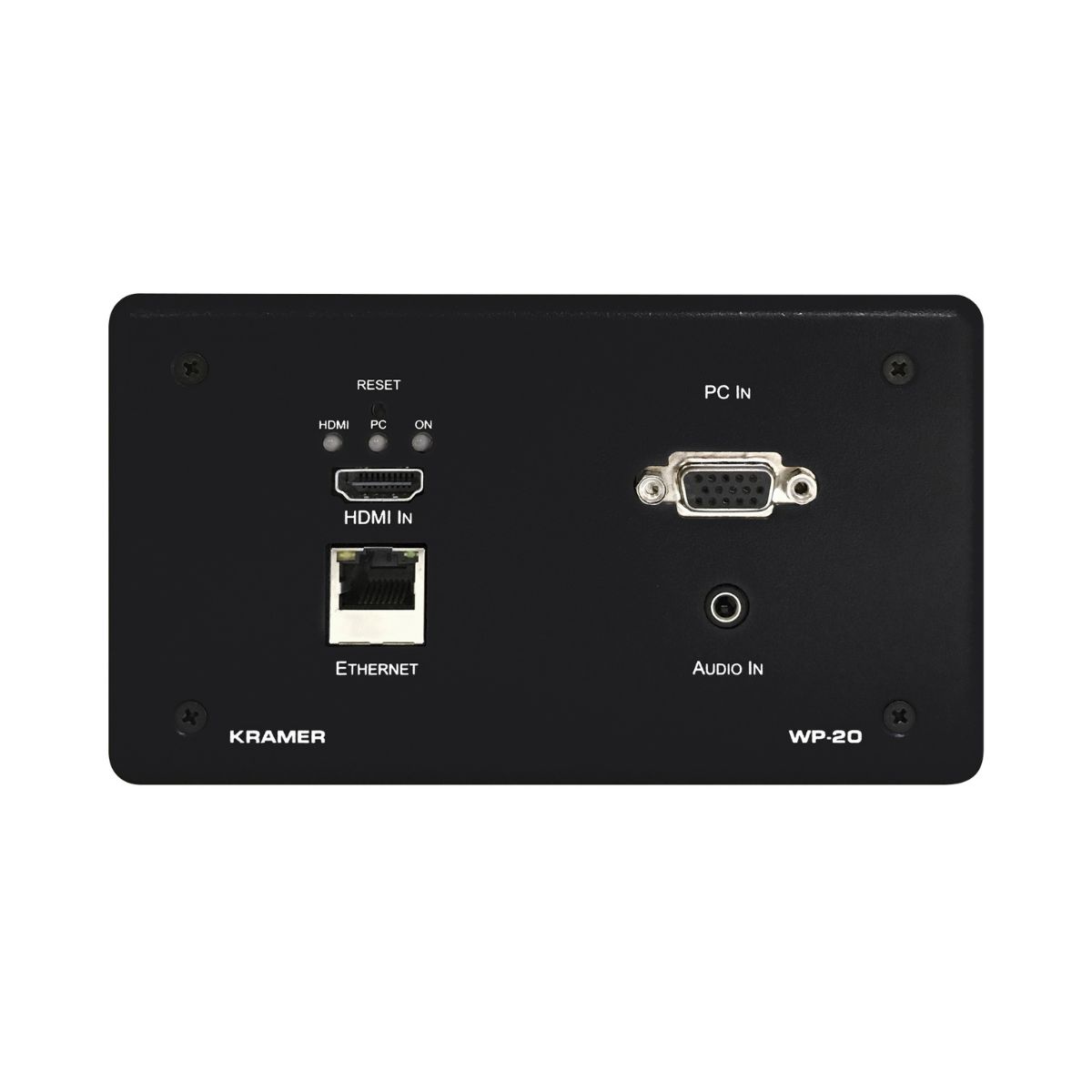

WP-20 HDMI & VGA Wall–Plate Auto Switcher

4K60 4:2:0 HDMI & VGA Wall–Plate Auto Switcher/Transmitter over Extended–Reach PoE over HDBaseT with Maestro Room Automation

Highlights

  • 2x1 BYOD Plug and Play Wall–mounted Switching
  • Built-in intelligent Maestro Room Automation
  • Up to 4K@60Hz (4:2:0) Resolution
  • Up to 100m (330ft) standard HDBaseT Extension
  • PoE acceptor
Download

WP-3H2 4K HDR HDMI Wall–Plate Extender

4K HDR HDMI Wall–Plate Extender (EU, UK, US)

Highlights

  • Max Resolution — Up to 4K@60Hz (4:4:4)
  • Max Range — 45m (150ft) for 1080p60; 20m (65ft) for 4K@60 (4:4:4)
  • Supports HDR (High Dynamic Range) and HDCP 2.2
Download

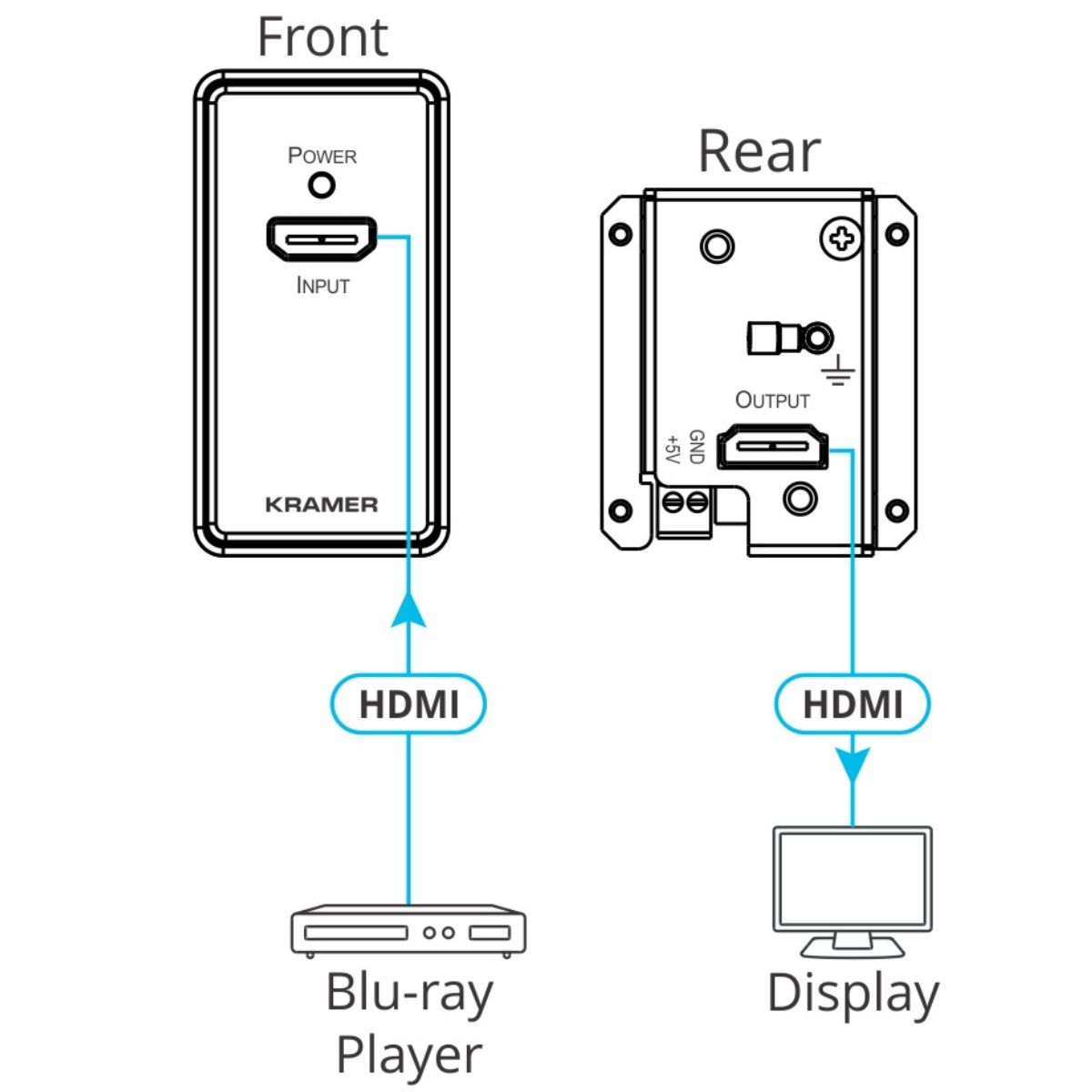

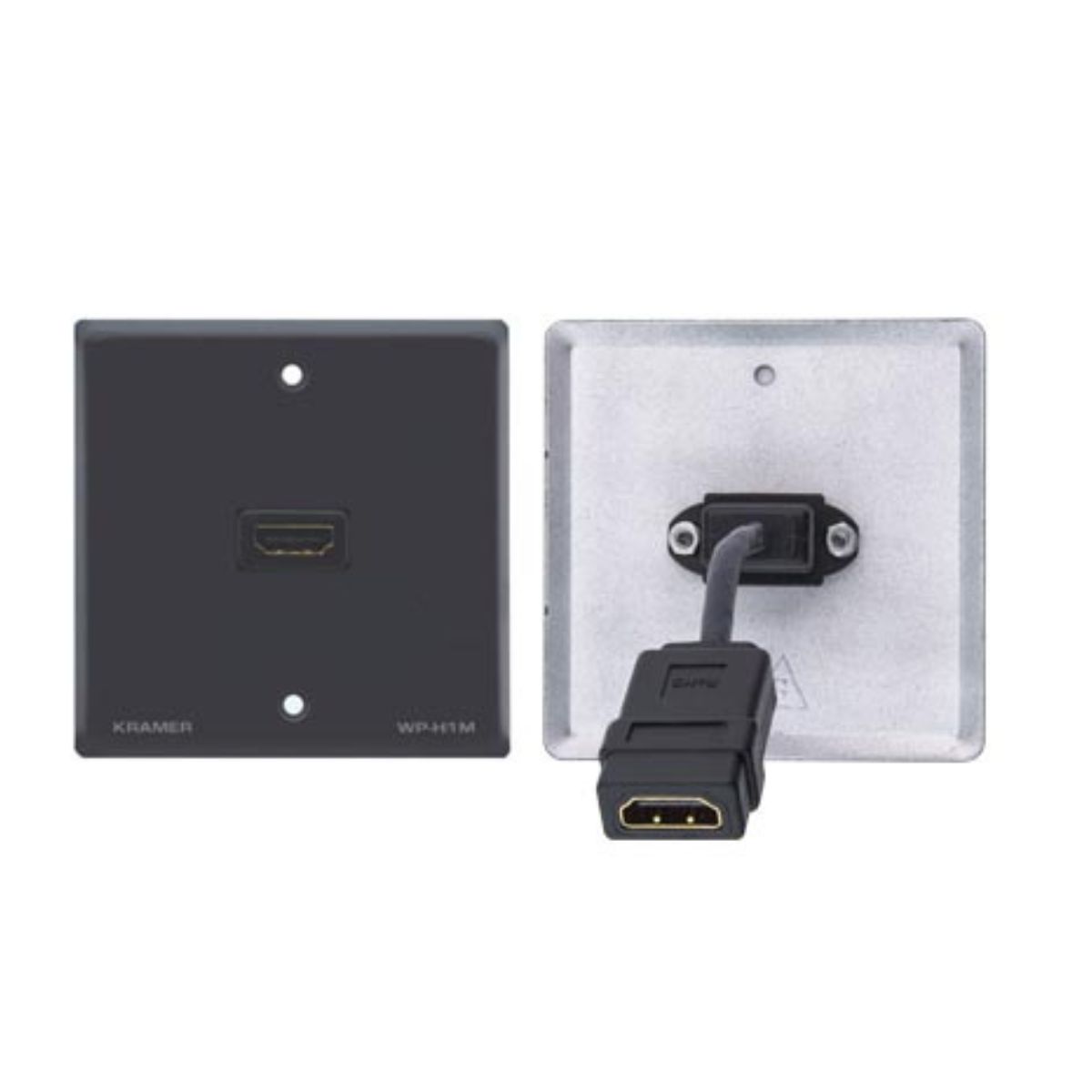

WP-H1M Passive Wall Plate — HDMI

Passive Wall Plate — HDMI

Highlights

HDMI Passive Wall Plate

  •  Front Panel Connection — 1 HDMI (F).
  •  Rear Panel Connection — 1 HDMI (F) on a flat, flexible cable.
  •  Dimensions — 6.9cm x 4.0cm x 11.4cm (2.71" x 1.57" x 4.49") US; 8.6cm x 4.0cm x 8.6cm (3.39" x 1.57" x 3.39") and 8cm x 4.0cm x 8cm (3.15" x 1.57" x 3.15") EU W, D, H.
Download

WXA-H1/US Passive Pass–through Wall Plate

Passive Pass-through Wall Plate — 15–pin HD, 3.5mm Audio, & HDMI

Highlights

  •  Front Panel Connections — 15–pin HD (F), HDMI (F), and 3.5mm (F).
  •  Rear Panel Connections — 15–pin HD (F), HDMI (F), and 3.5mm (F).
  •  EDID PassThru — Passes EDID signals from source to display.
  •  Size — Available in 1 gang US only.
  •  Keystone connectors (no pigtail).
Download

WXA-HU/US Passive Pass–through Wall Plate

Passive Pass-through Wall Plate — 15–pin HD, 3.5mm Audio, HDMI & USB

Highlights

  •  Front Panel — 15–pin HD (F), HDMI (F), USB (F), and 3.5mm (F).
  •  Rear Panel Connections — 15–pin HD (F), HDMI (F), USB (F), and 3.5mm (F).
  •  EDID PassThru — Passes EDID signals from source to display.
  •  Size — Available in 1 gang US only.
  •  Keystone connectors (no pigtail).
Download

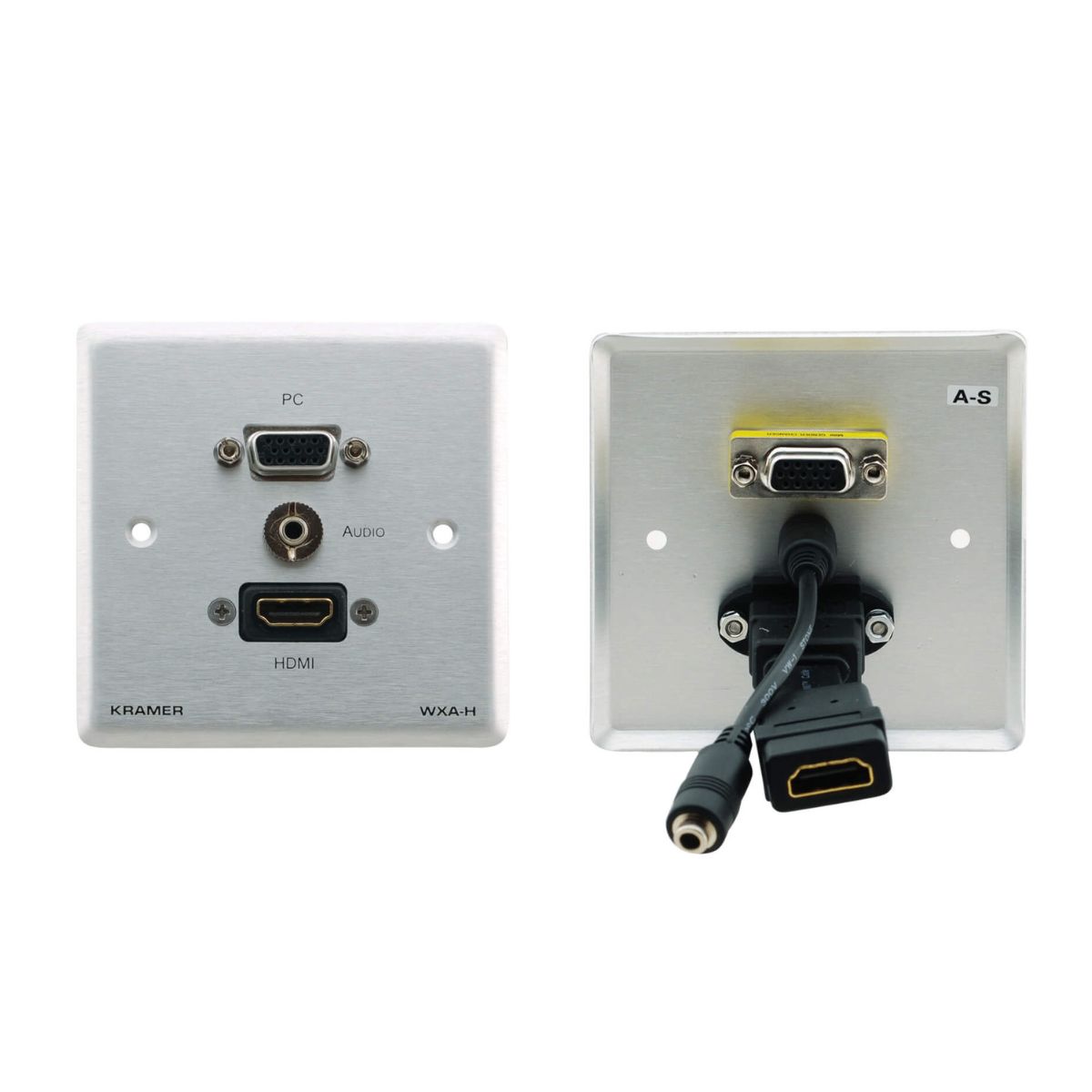

WXA-H Passive Wall Plate

Passive Wall Plate — 15–pin HD, 3.5mm Audio & HDMI

Highlights

  •  Front Panel Connections — 15–pin HD (F), HDMI (F), and 3.5mm (F).
  •  Rear Panel Connections — 15–pin HD (F), HDMI (F), and 3.5mm (F).
  •  EDID PassThru — Passes EDID signals from source to display.
  •  Dimensions — 6.9cm x 4.0cm x 11.4cm (2.71" x 1.57" x 4.49") US; 8.6cm x 4.0cm x 8.6cm (3.39" x 1.57" x 3.39") and 8cm x 4.0cm x 8cm (3.15" x 1.57" x 3.15") EU W, D, H.
Download

FRAME-1GP Design Frame for 2 Wall Plate Inserts

Design Frame for 2 Wall Plate Inserts — 1–Gang

Highlights

  • Available in EU and UK sizes
  • Elegant Design
  • FRAME−1GP is a 1−gang EU/UK size design frame for mounting 2 wall plate inserts.
Download

WP-871XR/WP-789T EU PANEL SET

Black Frame and Faceplate Set for Wall Plate

Highlights

  • One EU and one UK size black frame set
  • For Kramer WP–871xr and WP–789T wall plates
Download

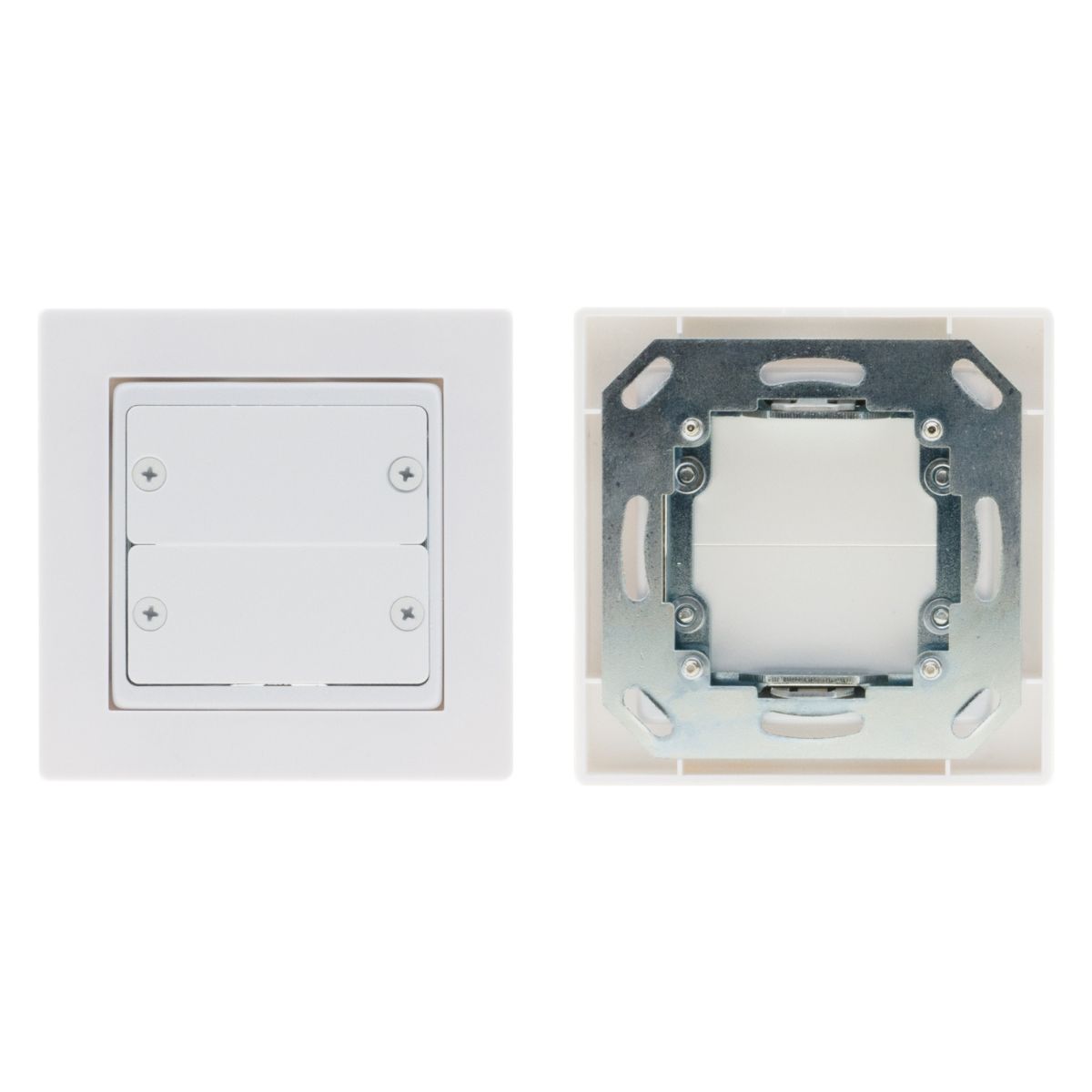

On-Wall Box (EU) On–Wall Box European Size

On–Wall Box European Size

Highlights

  •  Size — 1 gang models — 80mm (W) x 80mm (H) (3.1” x 3.1”); 2 gang models — 148mm(W) x 80mm (H) (5.8” x 3.1”); for Depth see configurations.
  •  Color — Available in white.
  •  Included Hardware — Frame for 2/4/6 wall plate inserts. Inserts and blanks are not included.



Download

FRAME-1G Frame for Wall Plate Inserts

Frame for Wall Plate Inserts — 1 Gang

Highlights

Wall Plate Insert Frame

  •  USA Version — Holds 3 single wall plate inserts.
  •  International Versions — Hold 2 single wall plate inserts.
Download

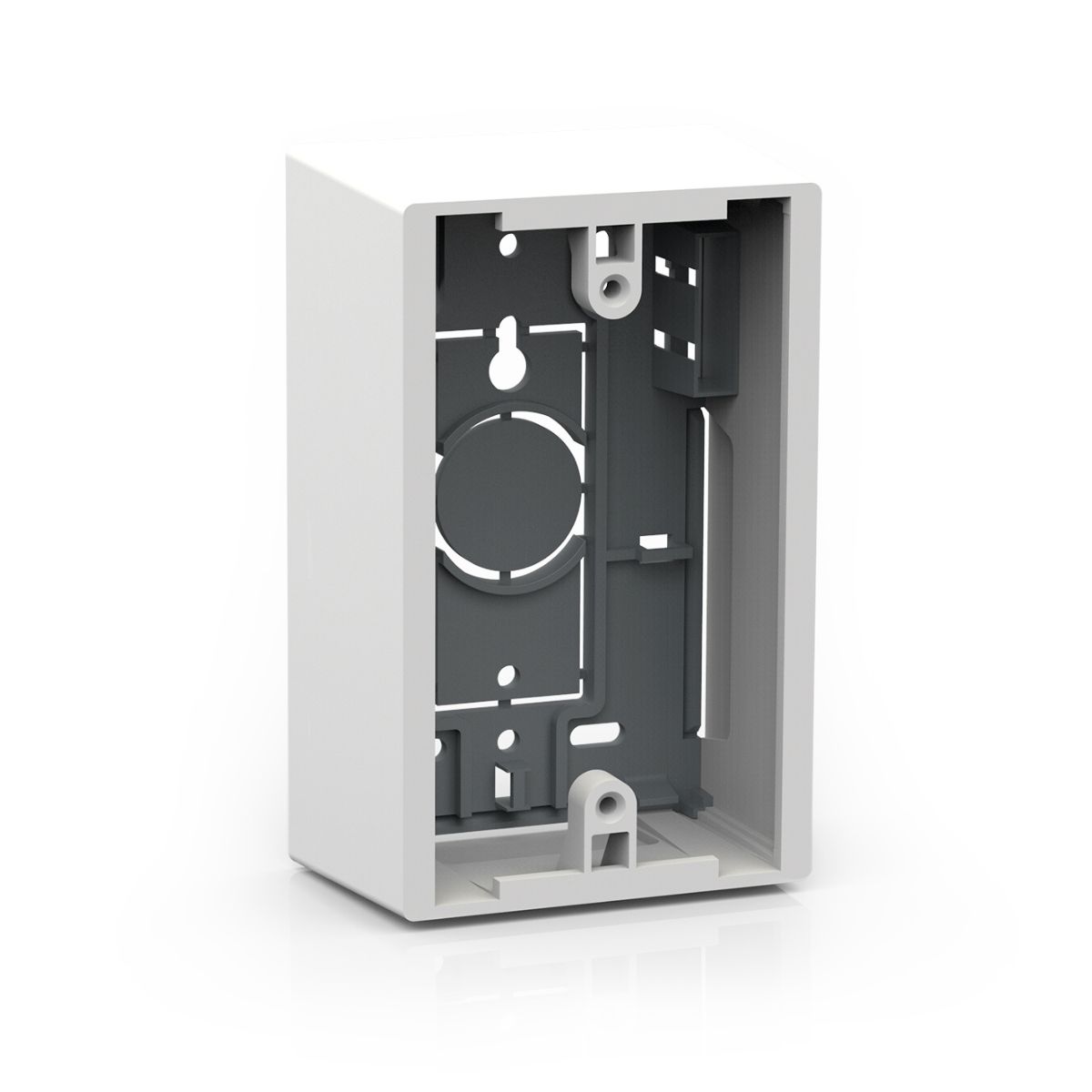

On-Wall Box (US-D) Wall Box

DECORA® On–Wall Box

Highlights

  • Size — 1 gang — 75.1mm x 119.5mm x 48mm (2.96” x 4.71” x 1.89”); 2 gang — 121.3mm x 119.5mm x 48mm (4.78” x 4.71” x 1.89”).
  •  Availability — Available in white.
Download

FRAME-2G Frame for Wall Plate Inserts

Frame for Wall Plate Inserts — 2 Gang

Highlights

Wall Plate Insert Frame

  •  USA Version — Holds 6 wall plate inserts.
  •  International Versions — Hold 4 wall plate inserts.
Download

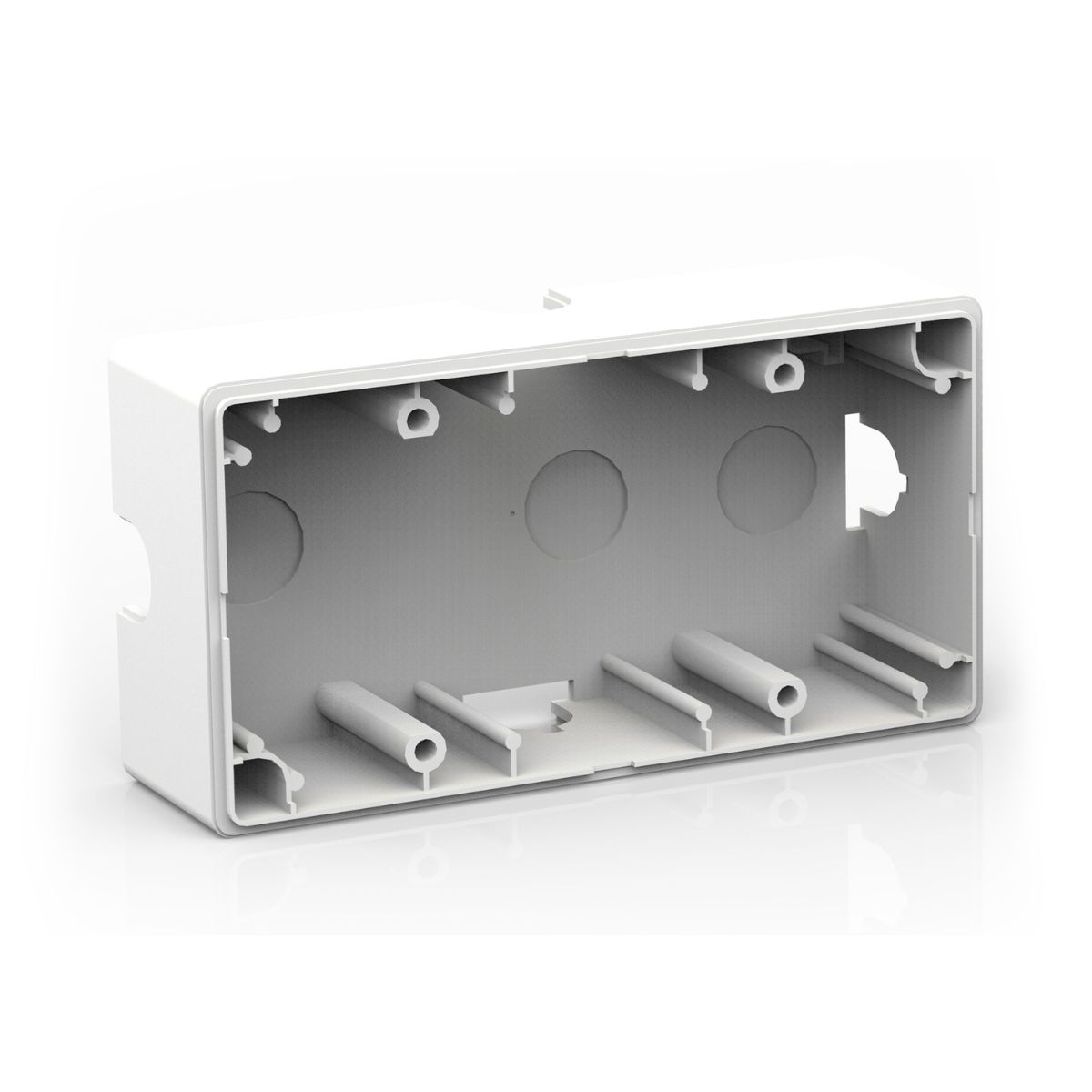

On-Wall Box (Merten)

On–Wall Box Merten

Highlights

  • Dimensions — 148mm x 80mm x 40mm (5.8” x 3.1” x 1.5”).
  •  Size — 2 gang EU, available in polar white.
  •  Included Hardware — Housing (4 preformed cable entries, sealed with blanking caps) and M–Smart frame.
  •  Product Identical to MERTEN 512219 & 484219.
Download

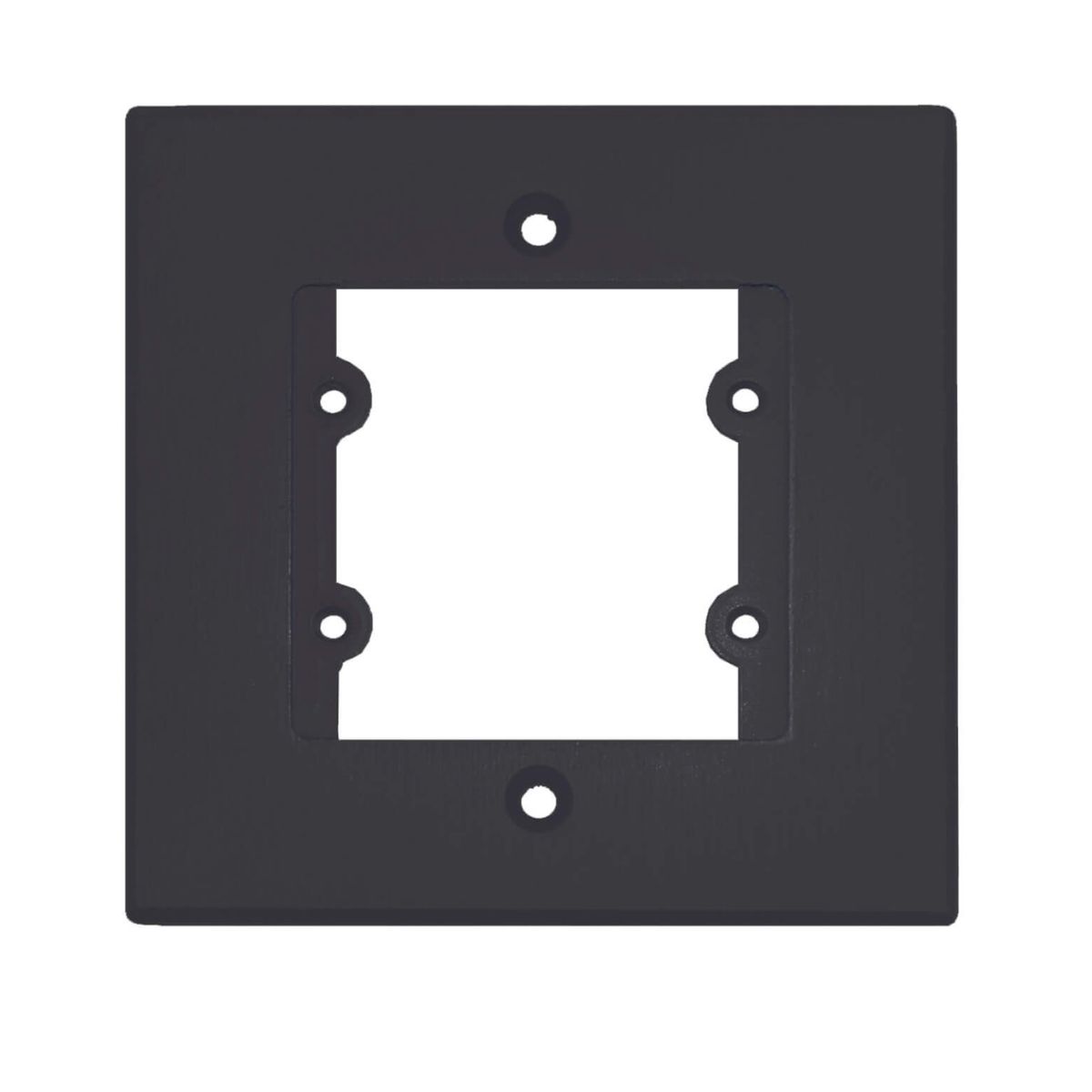

WP-789R EU PANEL SET

Black Frame and Faceplate Set for WP–789R Wall Plate

Highlights

WP−789R EU PANEL SET is a black frame and faceplate set for Kramer WP−789R EU/UK size wall plate.

Download

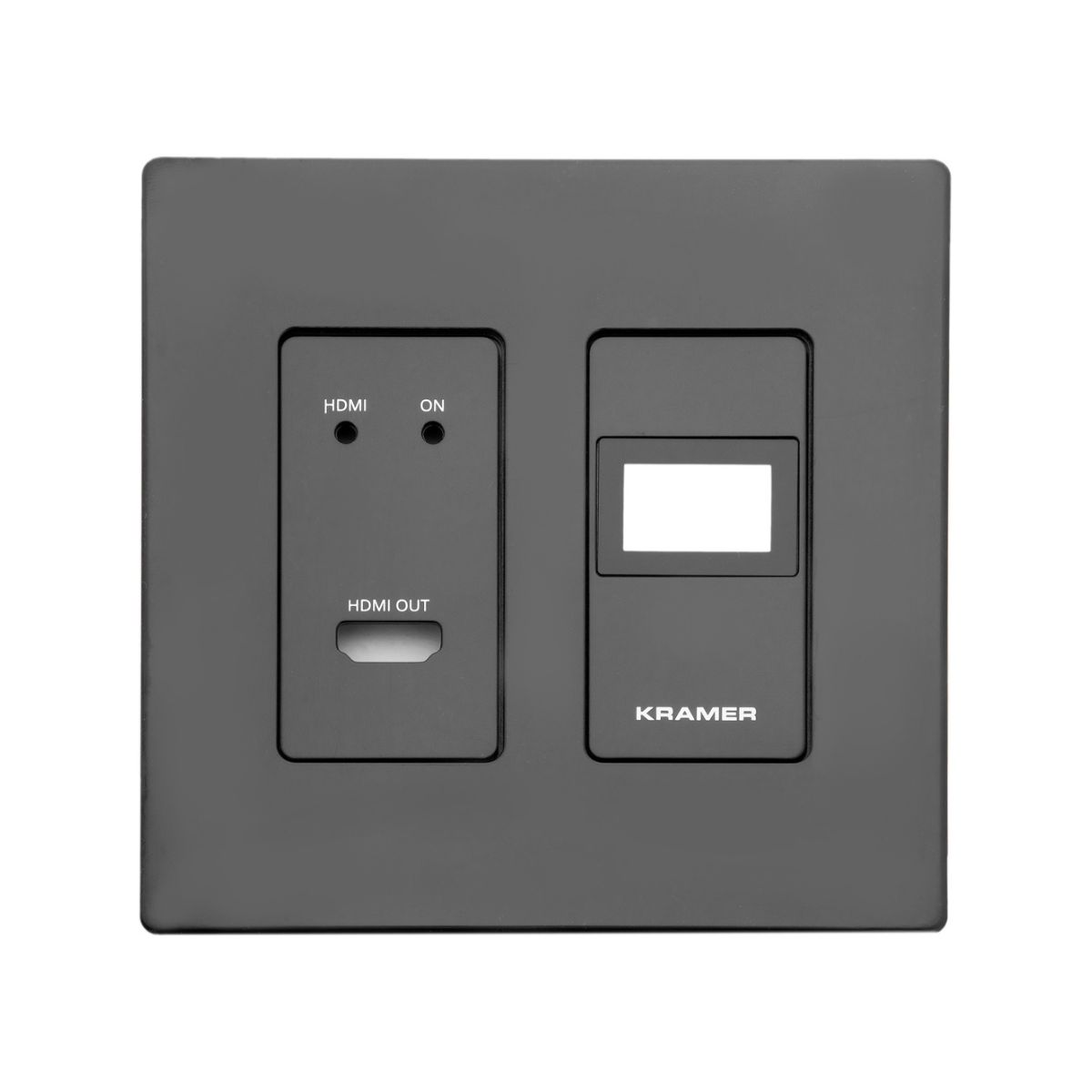

WP-DEC7 EU PANEL SET

Black Frame and Faceplate Set for KDS–DEC7 EU/UK Wall Plate

Highlights

WP−DEC7 EU/UK PANEL SET is a black frame and faceplate set for Kramer WP−DEC7 wall plate.

Download

WP-DEC7 US PANEL SET Wall Plate

Black Frame and Faceplate Set for KDS–DEC7 US Wall Plate

Highlights

WP−DEC7 US PANEL SET is a black frame and faceplate set for Kramer WP−DEC7 US PANEL SET US−D size wall plate.

Download

WP-SW2-EN7 EU PANEL SET Wall Plate

Black Frame and Faceplate Set for WP–SW2–EN7 EU/UK Wall Plate

Highlights

WP−SW2−EN7 EU PANEL SET is a black frame and faceplate set for Kramer WP−SW2−EN7 EU/UK wall plate.

Download

WP-SW2-EN7 US PANEL SET Wall Plate

Black Frame and Faceplate Set for WP–SW2–EN7 US Wall Plate

Highlights

WP−SW2−EN7 US PANEL SET is a black frame and faceplate set for Kramer WP−SW2−EN7 US PANEL SET US−D size wall plate.

Download
