VGA Extender Distribution Amplifiers Product Listing Details

Home|Product Listing

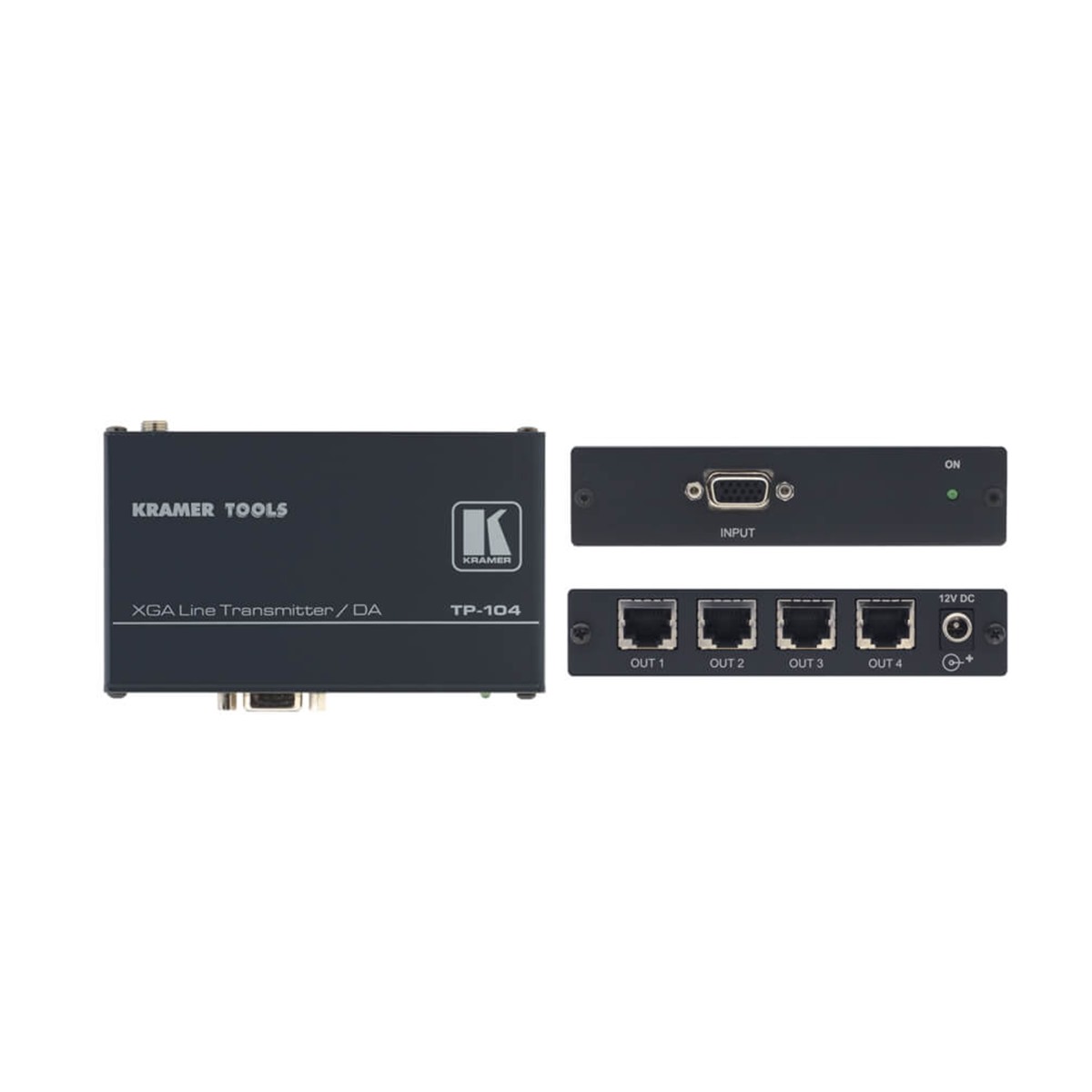

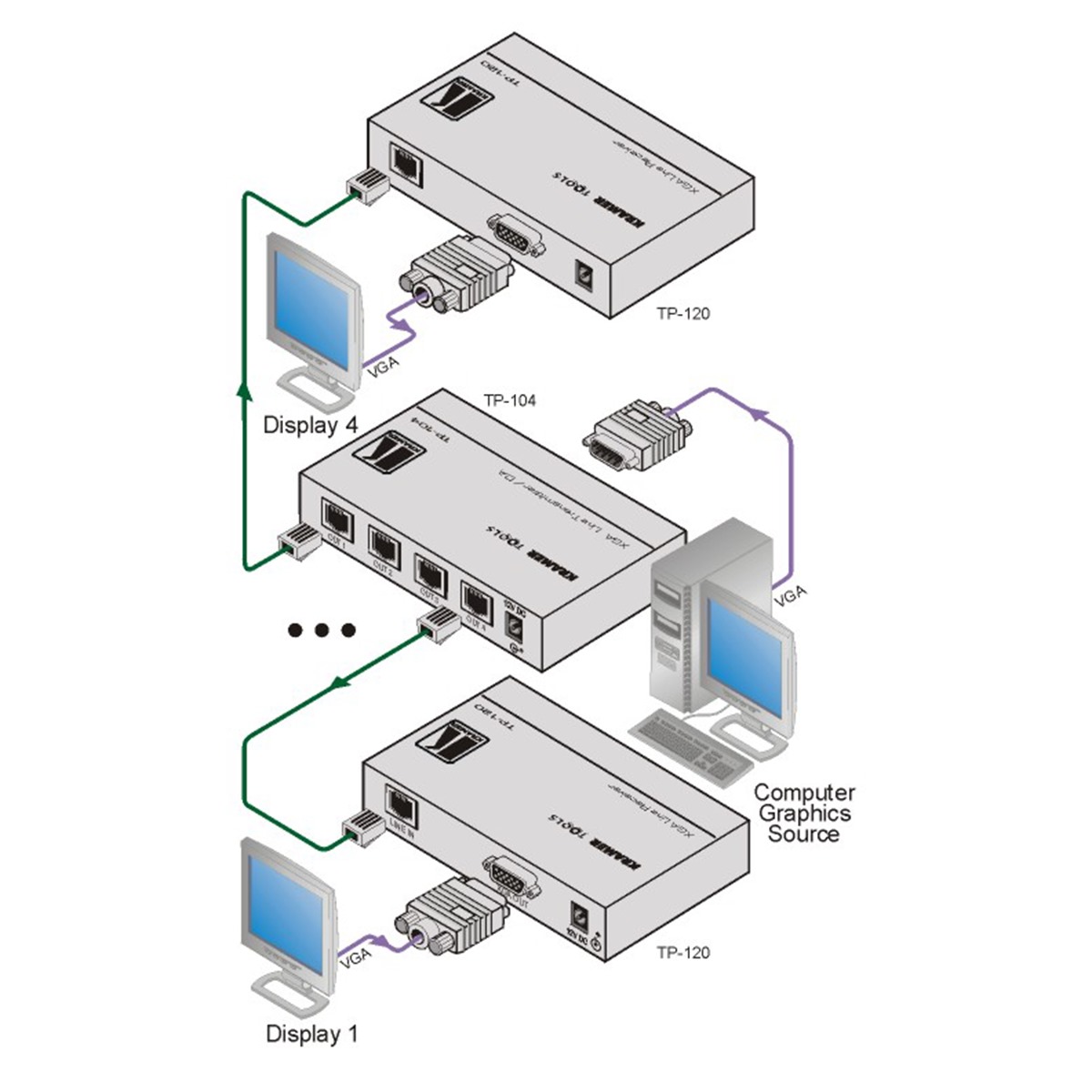

TP-104HD Transmitter & Distribution Amplifier

1:4 Computer Graphics Video & HDTV over Twisted Pair Transmitter & Distribution Amplifier

Highlights

HDTV Compatible.
Max. Resolution — WUXGA & 1080p.
Power Connect™ System — A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
Cable — UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
System Range — Up to 100m (320ft).
Compact Kramer TOOLS™ — 3 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.

Download

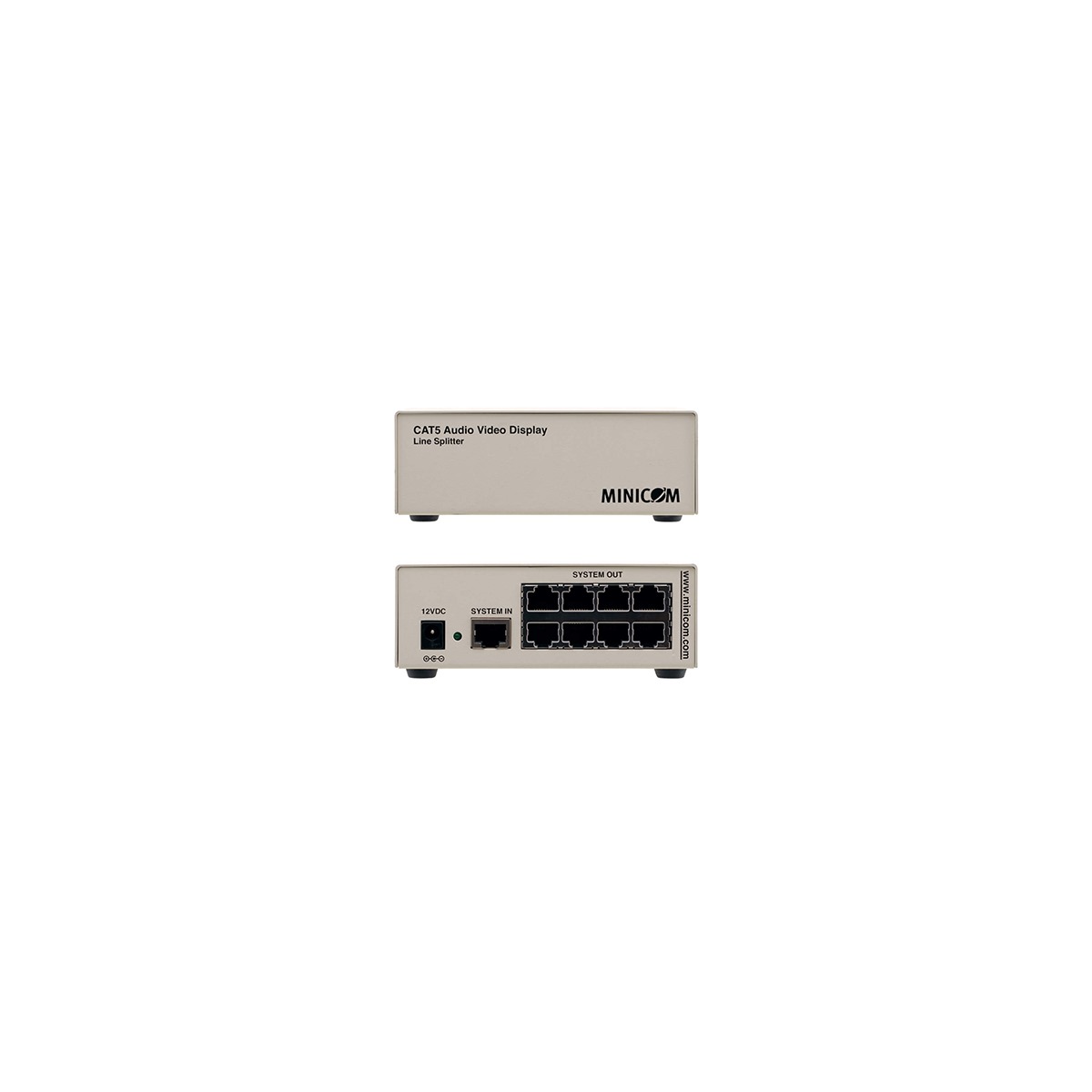

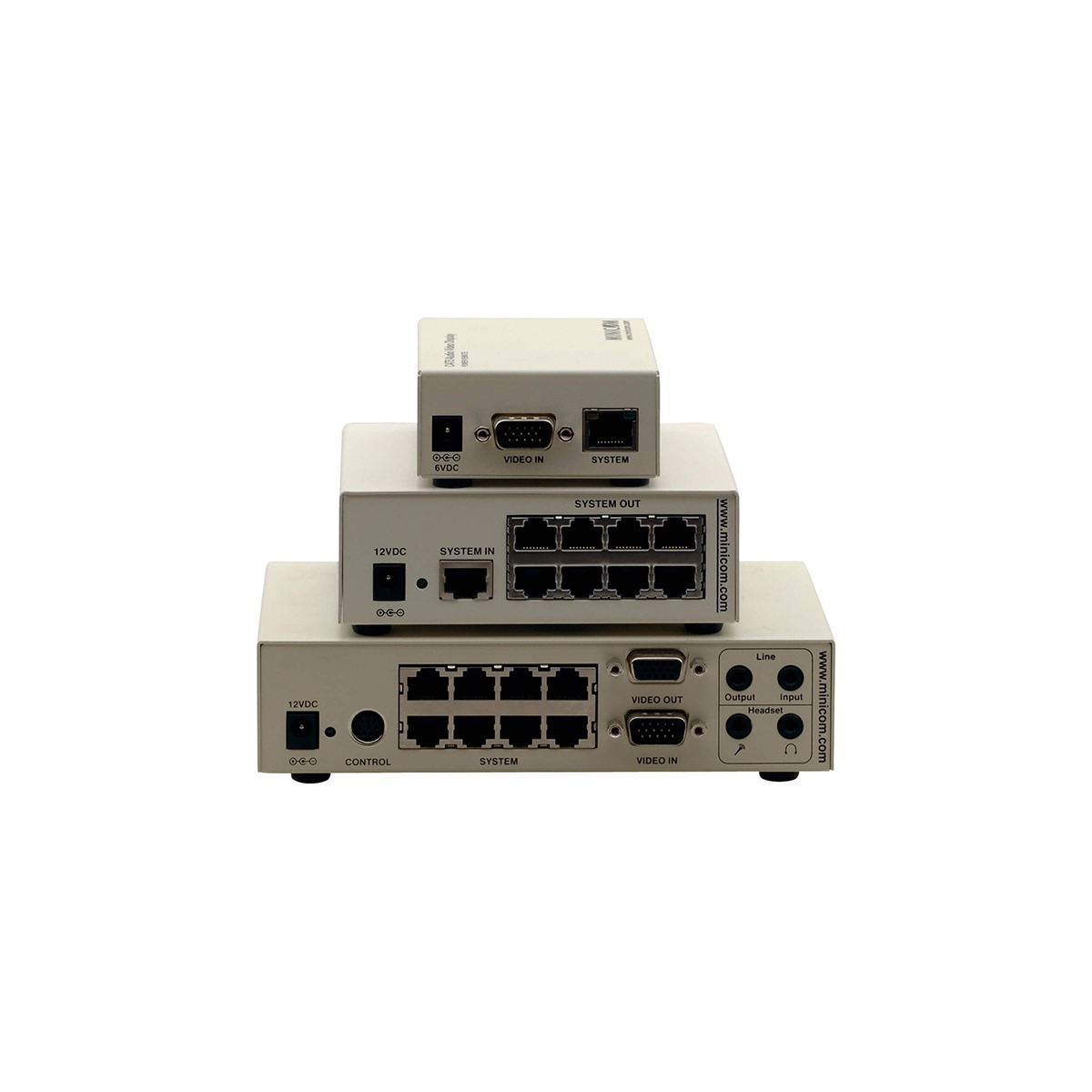

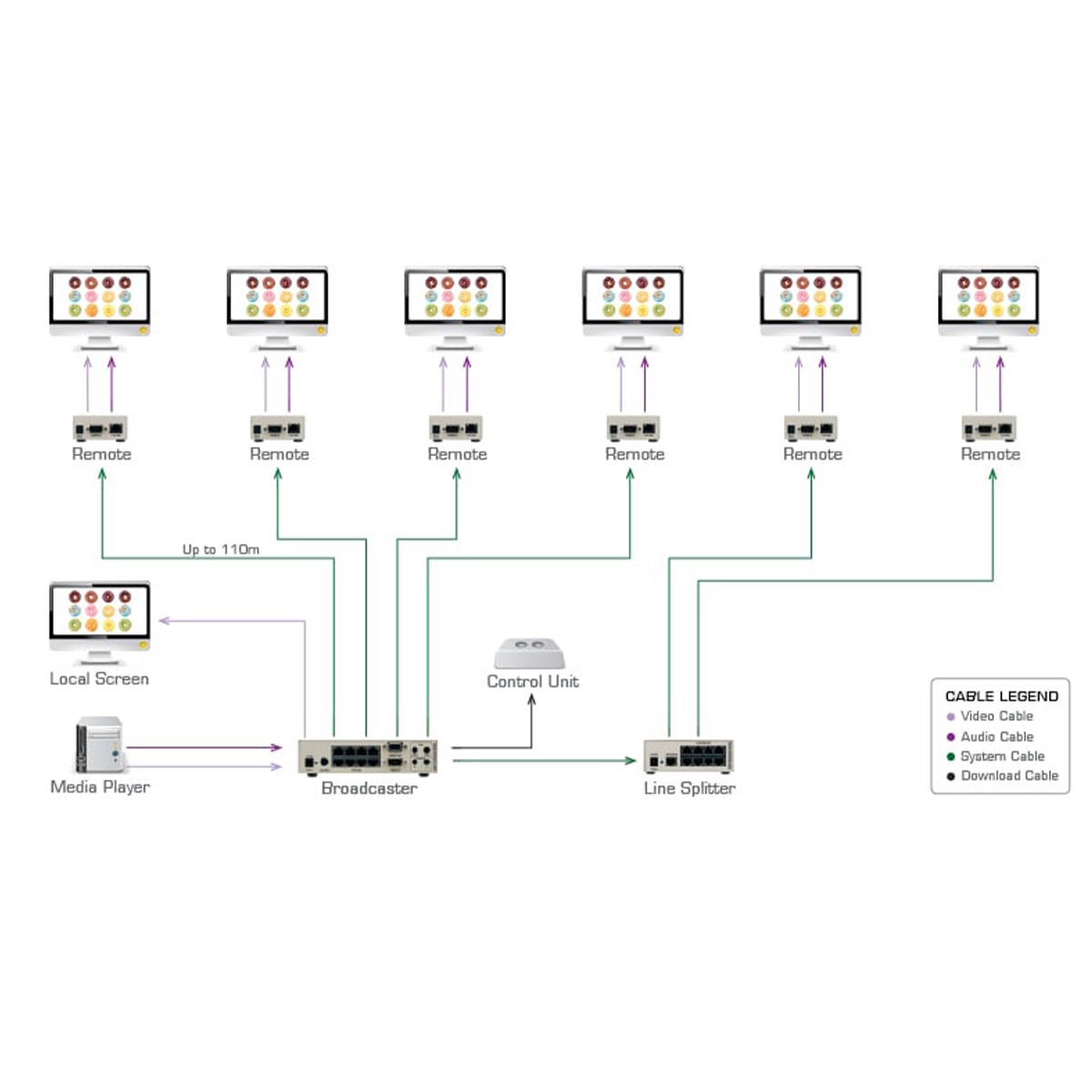

Audio Video Display System (AVDS)

Computer Graphics Video & Mono Audio over Twisted Pair Broadcaster, Splitter & Receiver

Highlights

System Range — 110m (360ft).
HDTV Compatible.
Max. Resolution — 1080p.
Local PC Input — On remote for classroom control applications.
Out–of–band System — Frees network from heavy image transfer.
Single CATx Cable.
No Player or Computer Needed at Display End.
Optional Remote On/Off Screen Control.

Download

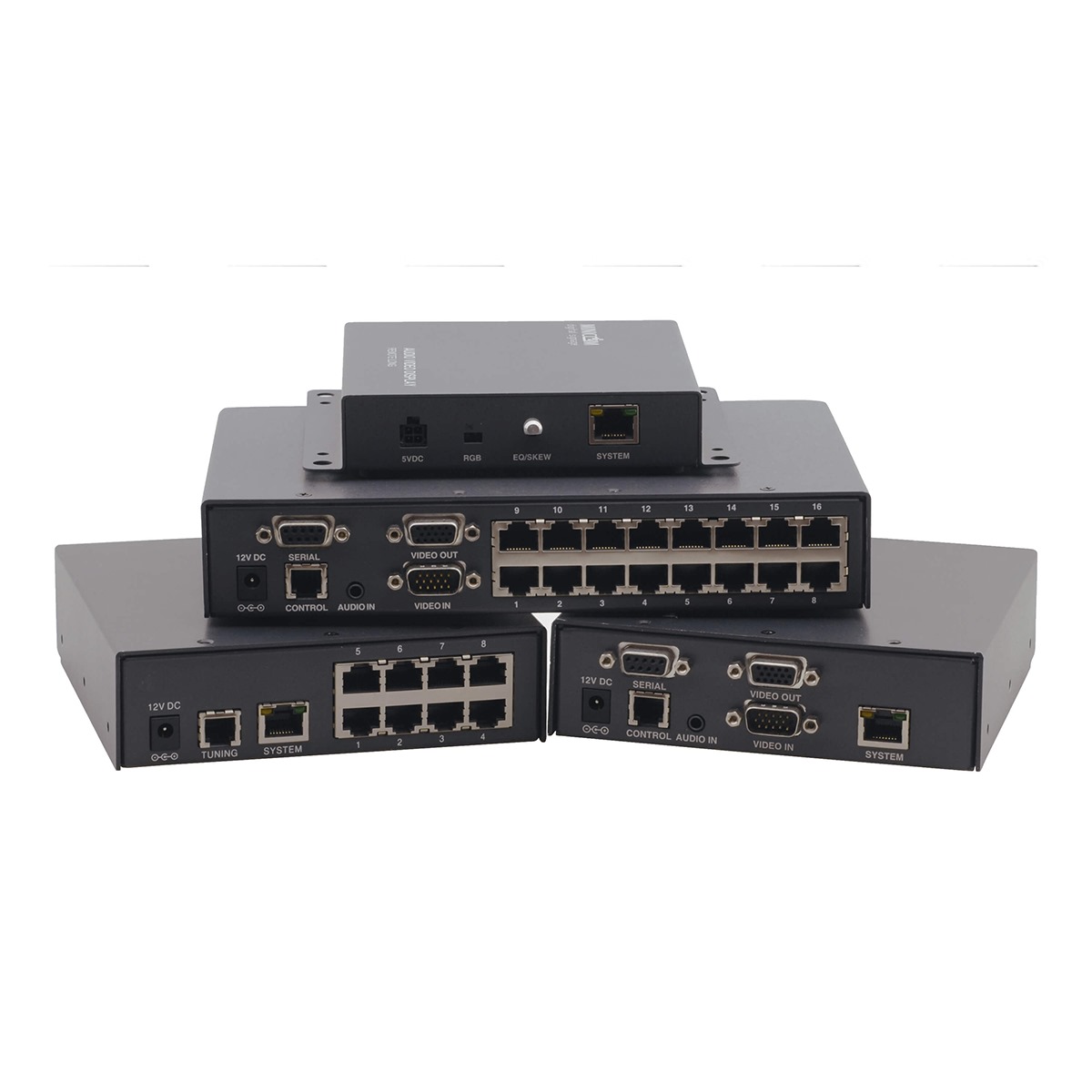

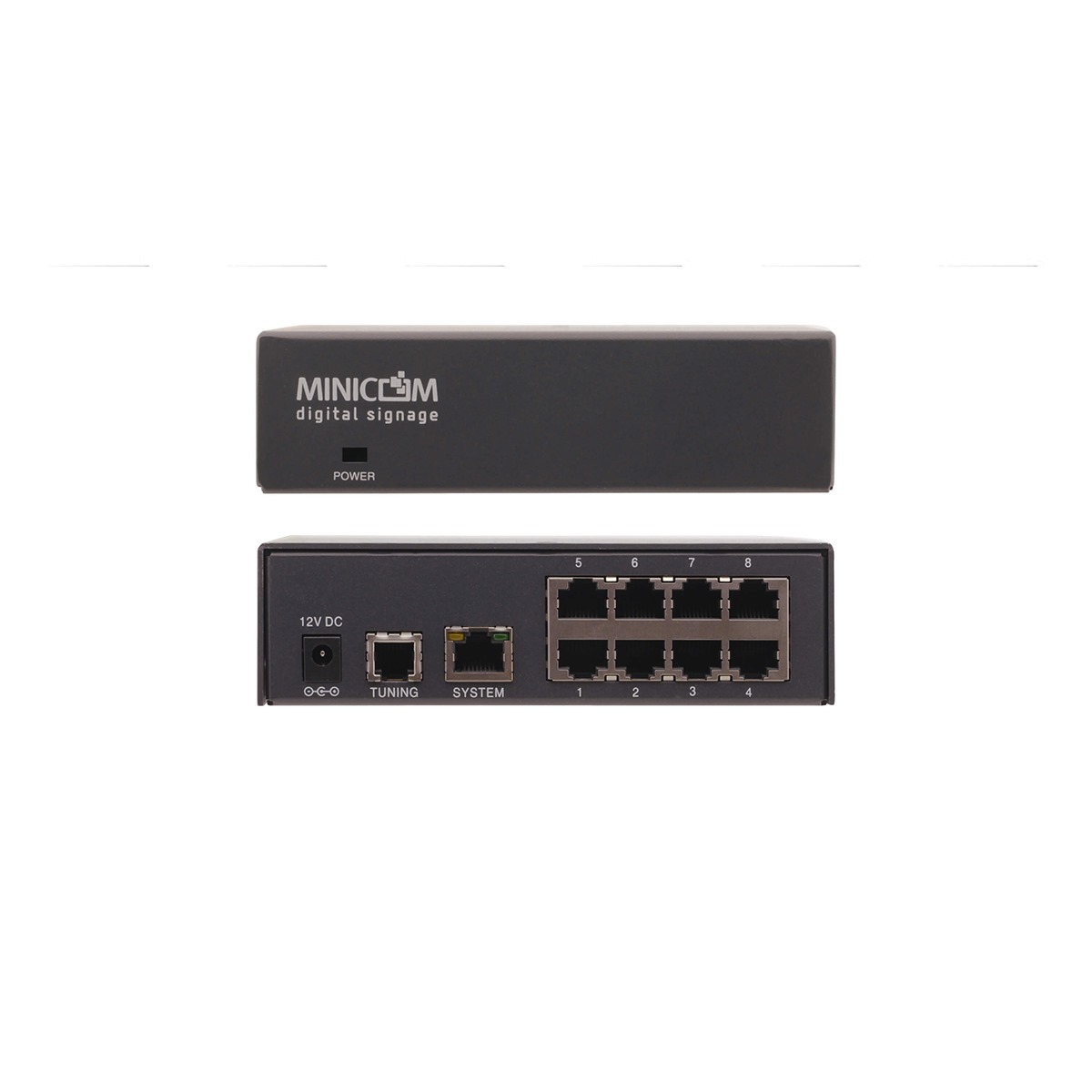

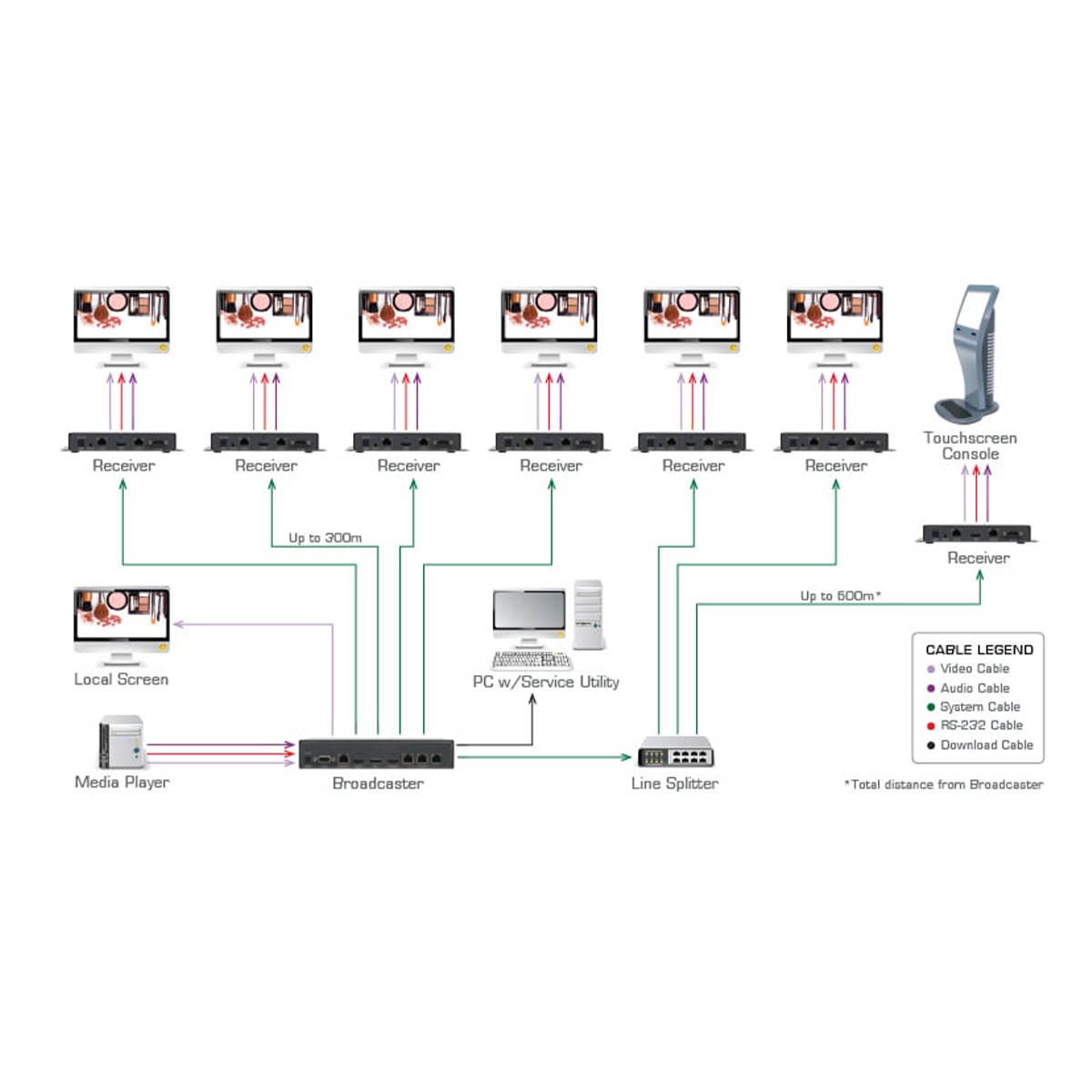

DS Vision 3000 (DSV3K)

Computer Graphics Video, Stereo Audio & Bidirectional RS–232 over Twisted Pair Transmitter, Broadcaster, Splitter & Receiver

Highlights

Transmitter, Broadcaster, Splitter & Receiver
System Range — 600m (2000ft)
Max Resolution — 1080p
Bidirectional RS–232
DDC support
VESA Screen Mounts.
Open Protocol — For CMS integration.

Download

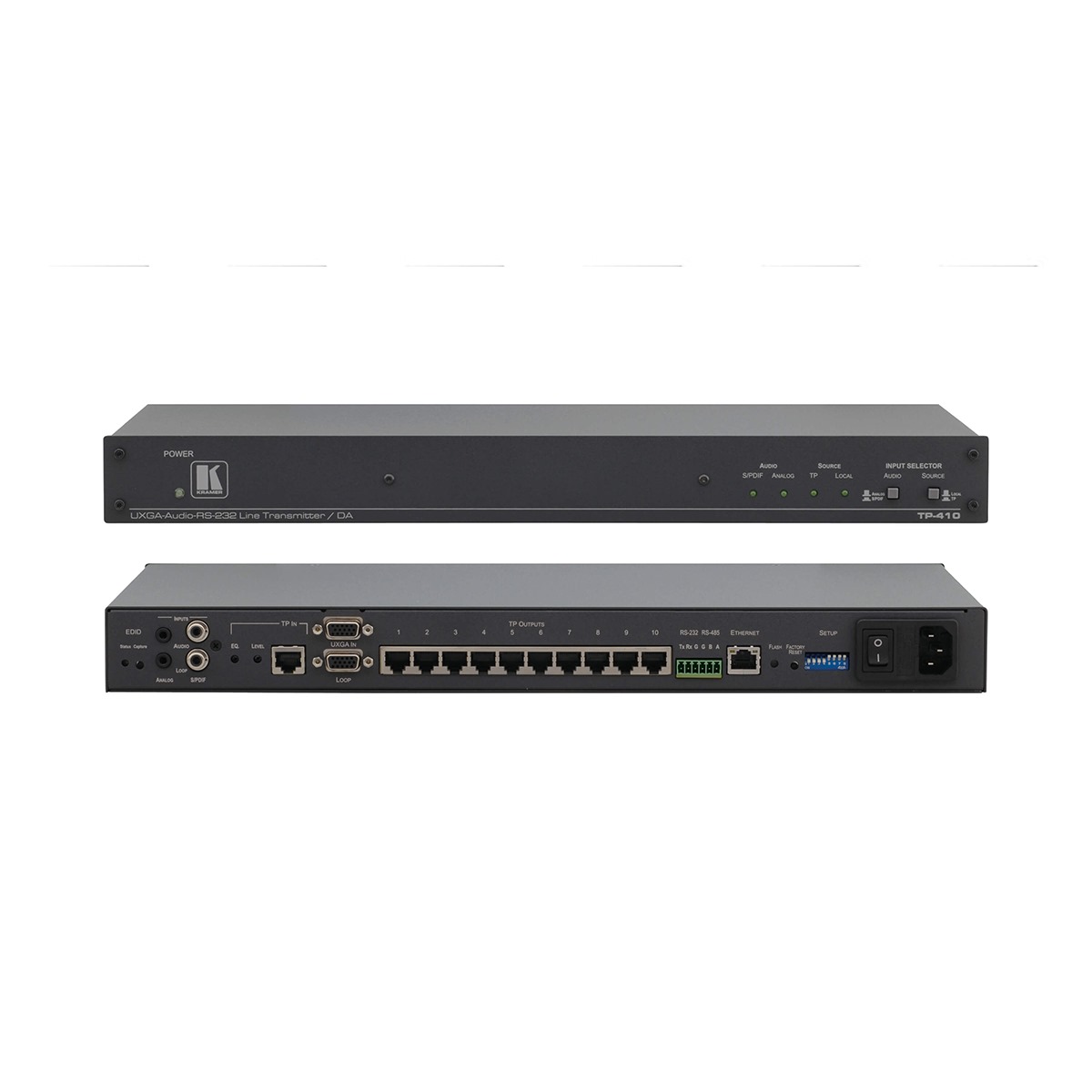

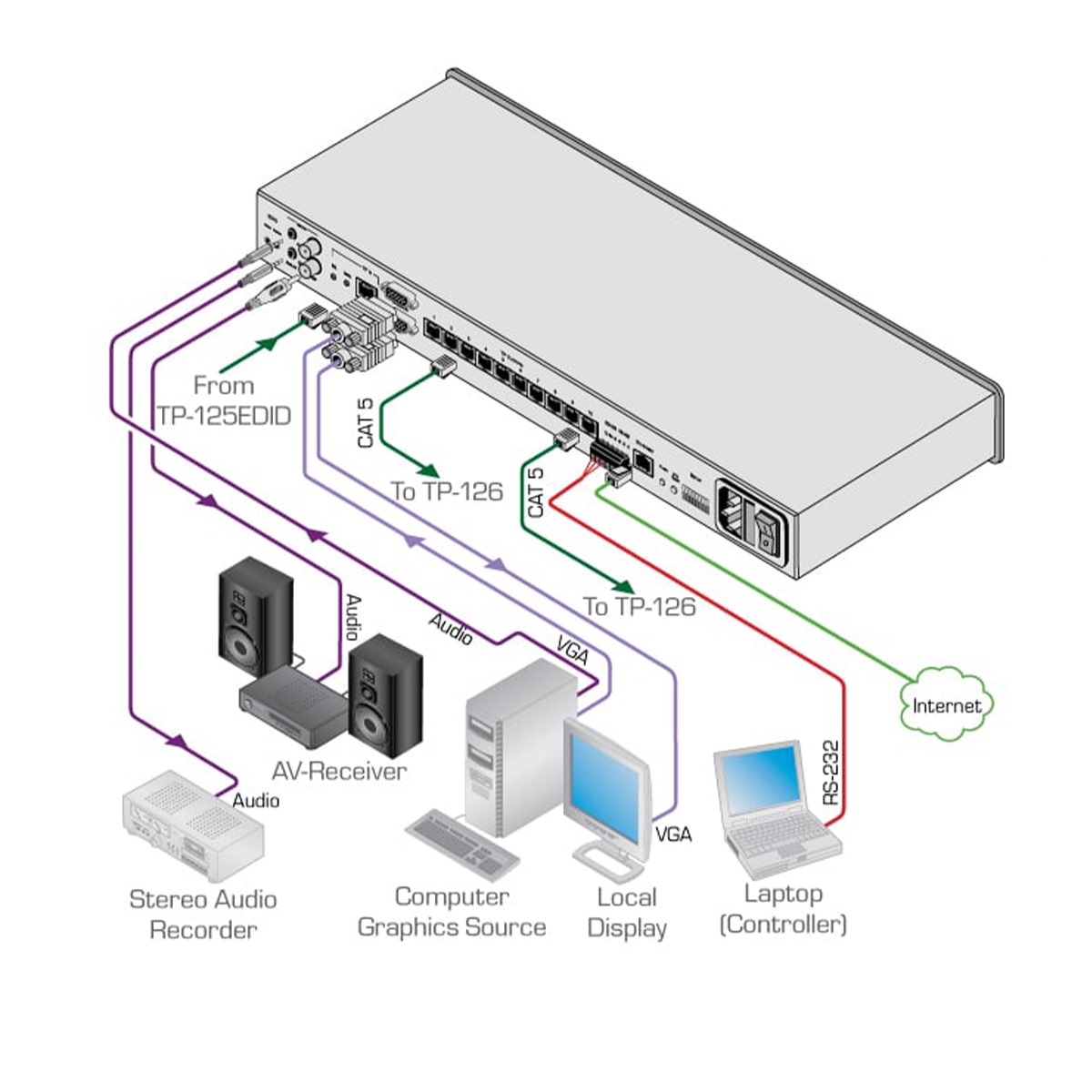

TP-410 1:10 Computer Graphics Video

1:10 Computer Graphics Video, Audio & RS–232 over Twisted Pair Transmitter & Distribution Amplifier

Highlights

Resolution — Up to and including WUXGA (1920x1080).
Selectable Inputs — Local or twisted pair (WUXGA, audio and RS–232).
Data Handling — Extensive bidirectional RS–232 embedding, de–embedding and other options.
Selectable Analog or Digital Audio Input.
EDID Capture — Copies and stores the EDID from a display device.
Transmission Range — Up to 300ft (100m) over STP cabling.
Flexible Control Options — Front panel, RS–232, RS–485, Ethernet.
Controls — Source selection buttons, power and source indicator LEDs, TP LEVEL and EQ trimmers.

Download

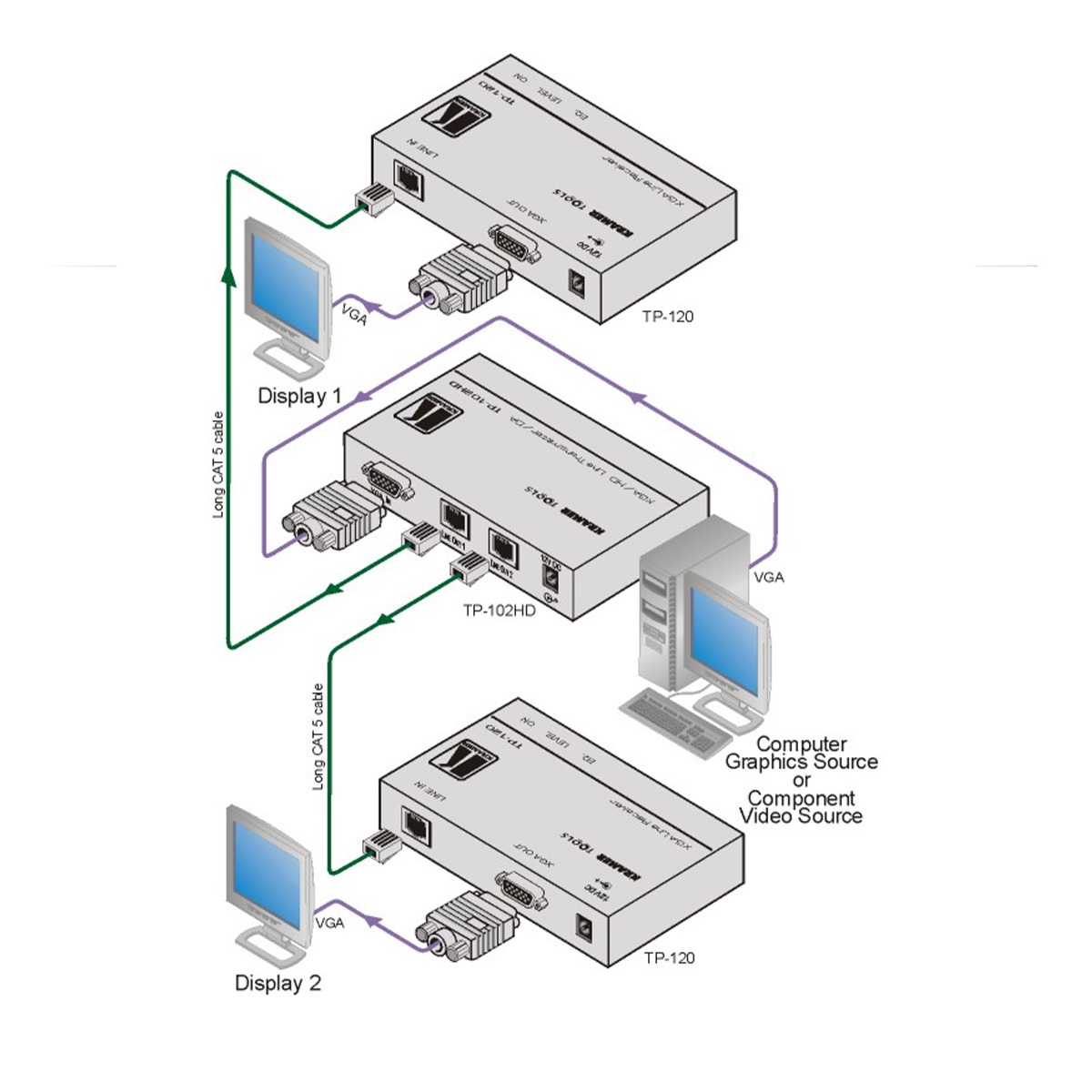

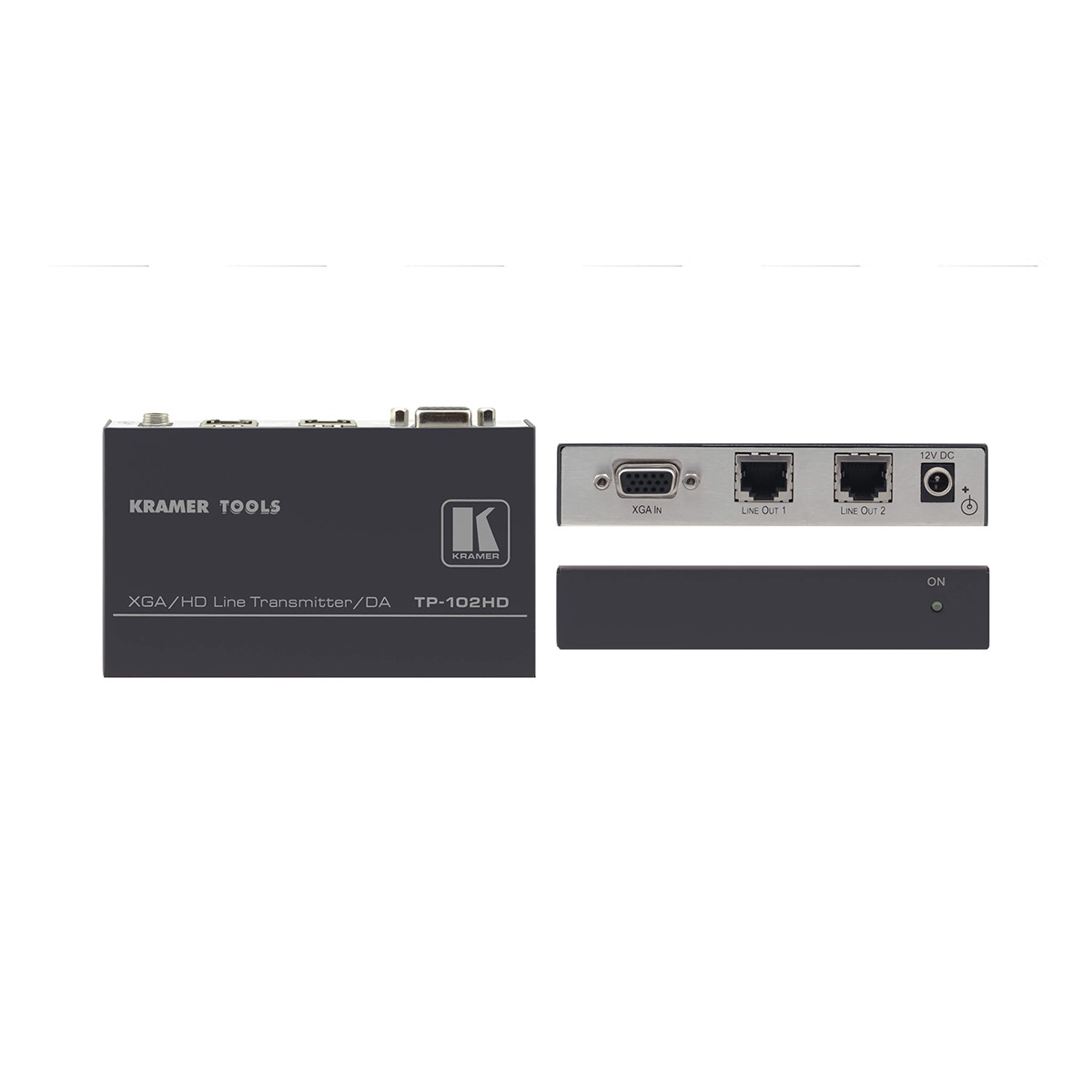

TP-102HD 1:2 Computer Graphics Video

1:2 Computer Graphics Video & HDTV over Twisted Pair Transmitter

Highlights

HDTV Compatible.
Max. Resolution — WUXGA & 1080p.
Power Connect™ System — A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
Long System Range — Up to 100m (320ft).
Cable — UTP (unshielded twisted pair) or STP (shielded twisted pair) cable such as CAT 5.
Sync Polarity Settings — H & V switches for improved HDTV compatibility with the CAT 5 outputs.

Download

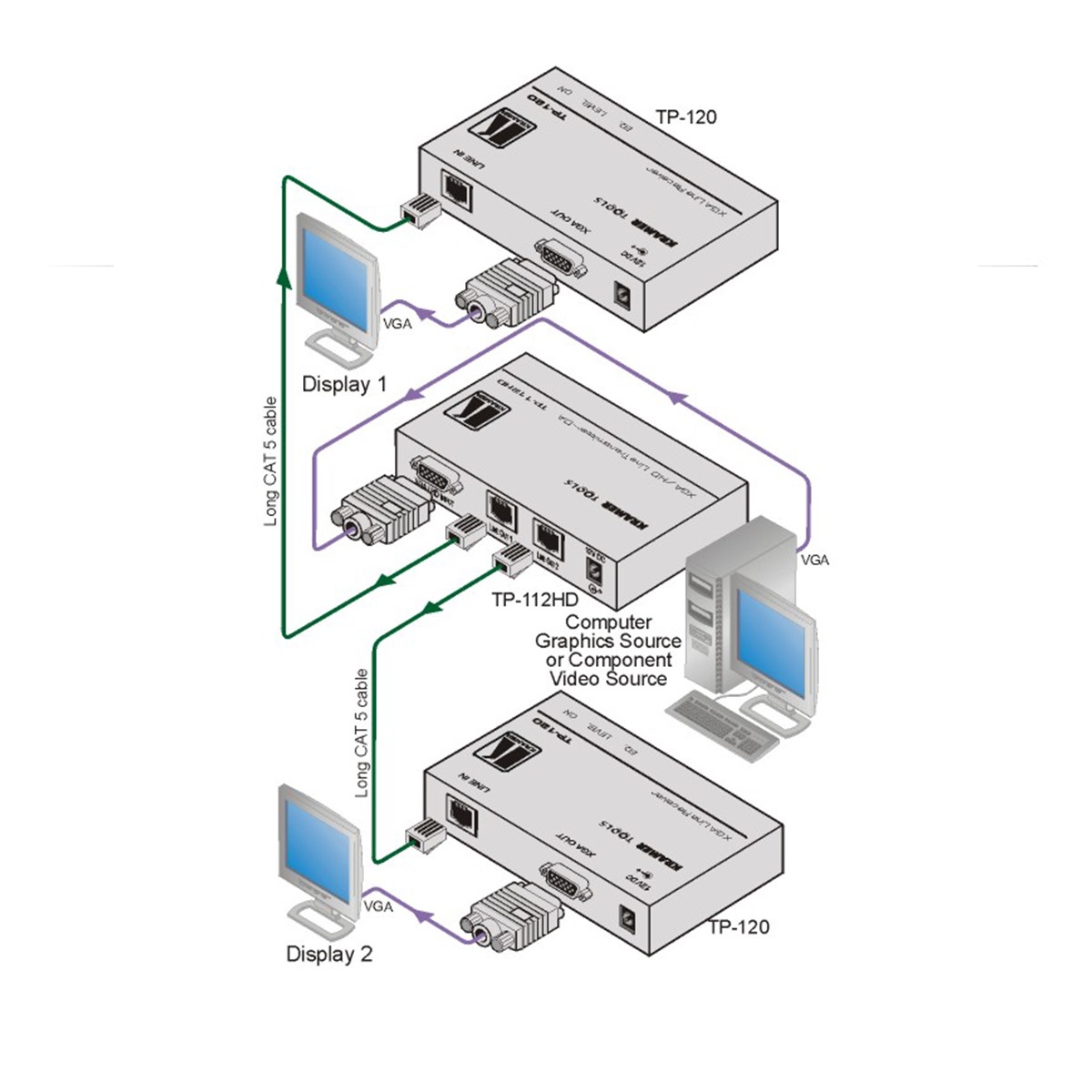

TP-112HD 1:2 Computer Graphics Video

1:2 Computer Graphics Video & HDTV over Twisted Pair Transmitter & Distribution Amplifier

Highlights

HDTV Compatible.
Max. Resolution — WUXGA & 1080p.
Power Connect™ System — A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
Long System Range — Up to 100m (320ft). Greater distances possible depending on signal resolution and cable.
Cable Type — Uses UTP (unshielded twisted pair) or STP (shielded twisted pair) cable such as CAT 5.
Sync Polarity Settings — H & V switches for improved HDTV compatibility with the CAT 5 outputs.

Download

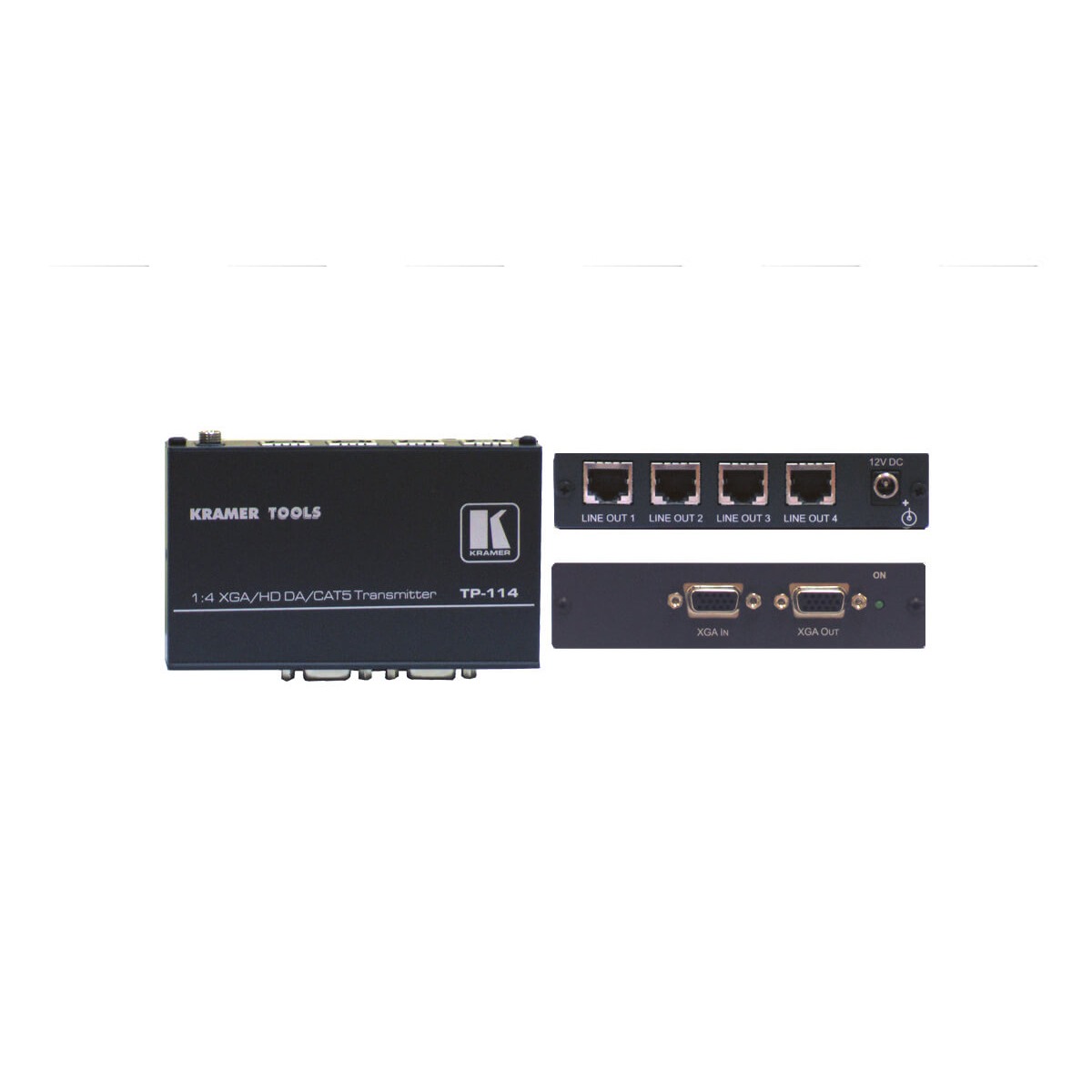

TP-114 1:4 Computer Graphics Video

1:4 Computer Graphics Video & HDTV over Twisted Pair Transmitter & Distribution Amplifier

Highlights

HDTV Compatible.
Max. Resolution — WUXGA & 1080p.
Sync Polarity Settings — H & V switches for improved HDTV compatibility.
Power Connect™ System — A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
System Range — Up to 100m (320ft). Greater distances possible depending on signal resolution and cable.
Cable — Uses UTP (unshielded twisted pair) or STP (shielded twisted pair) cable such as CAT 5.

Download

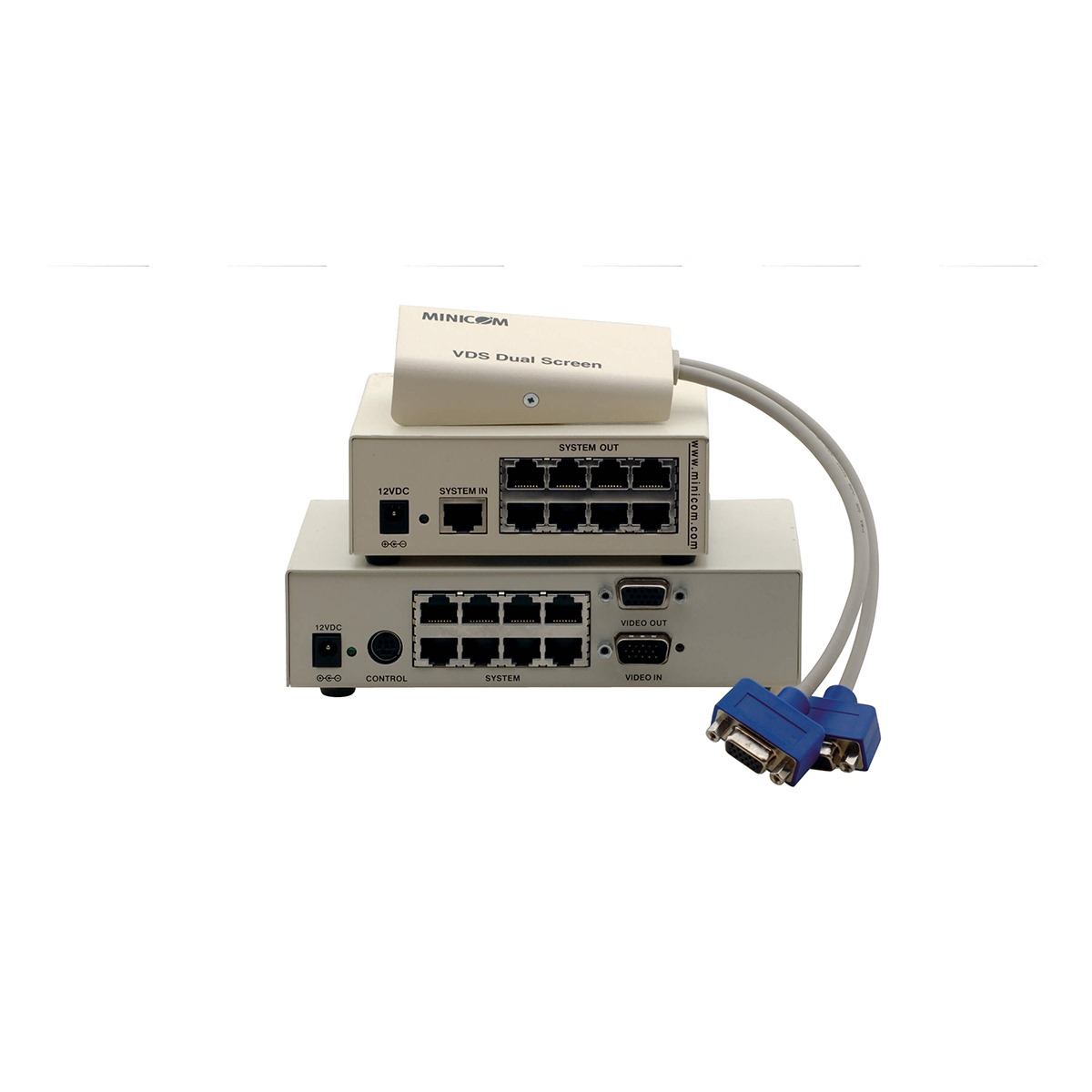

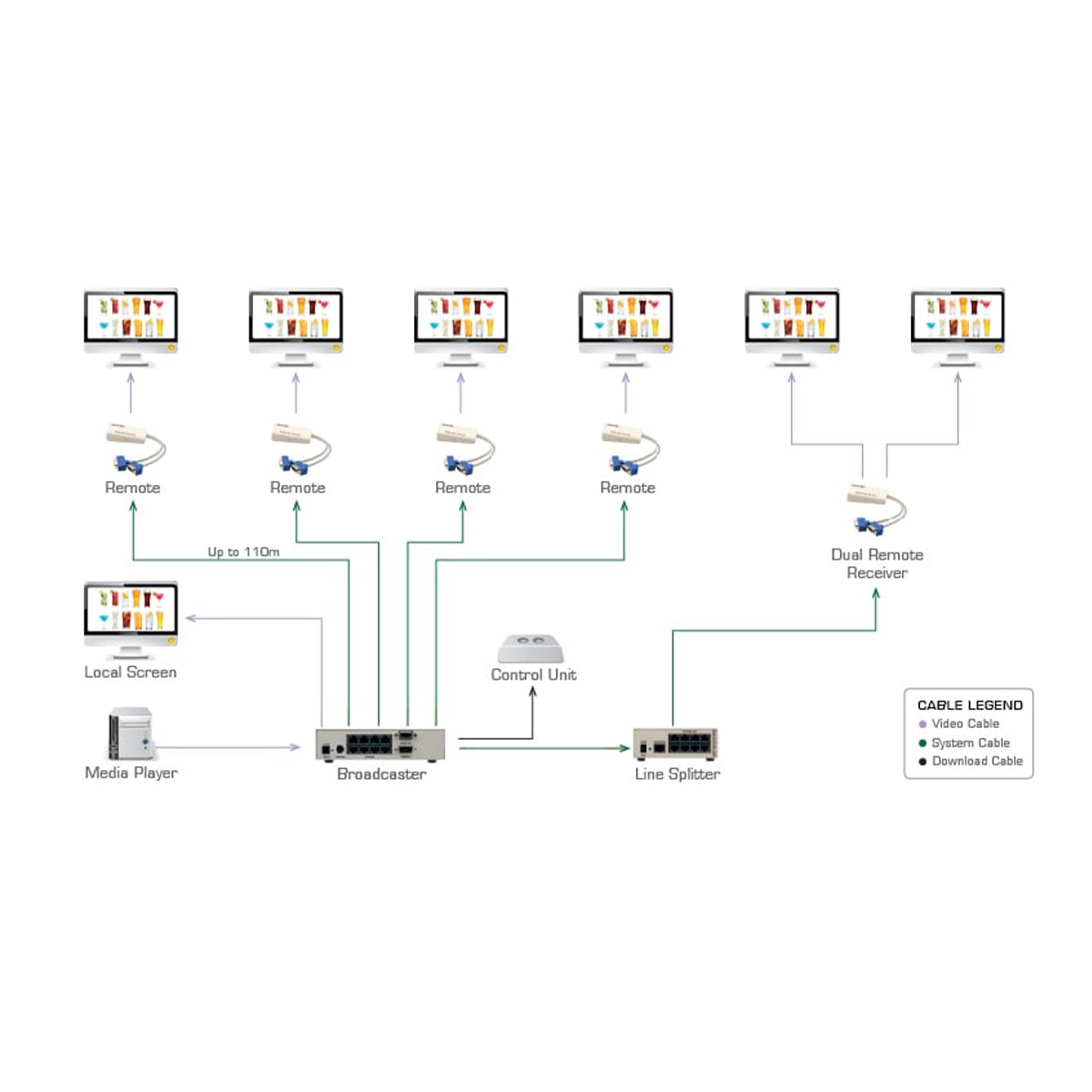

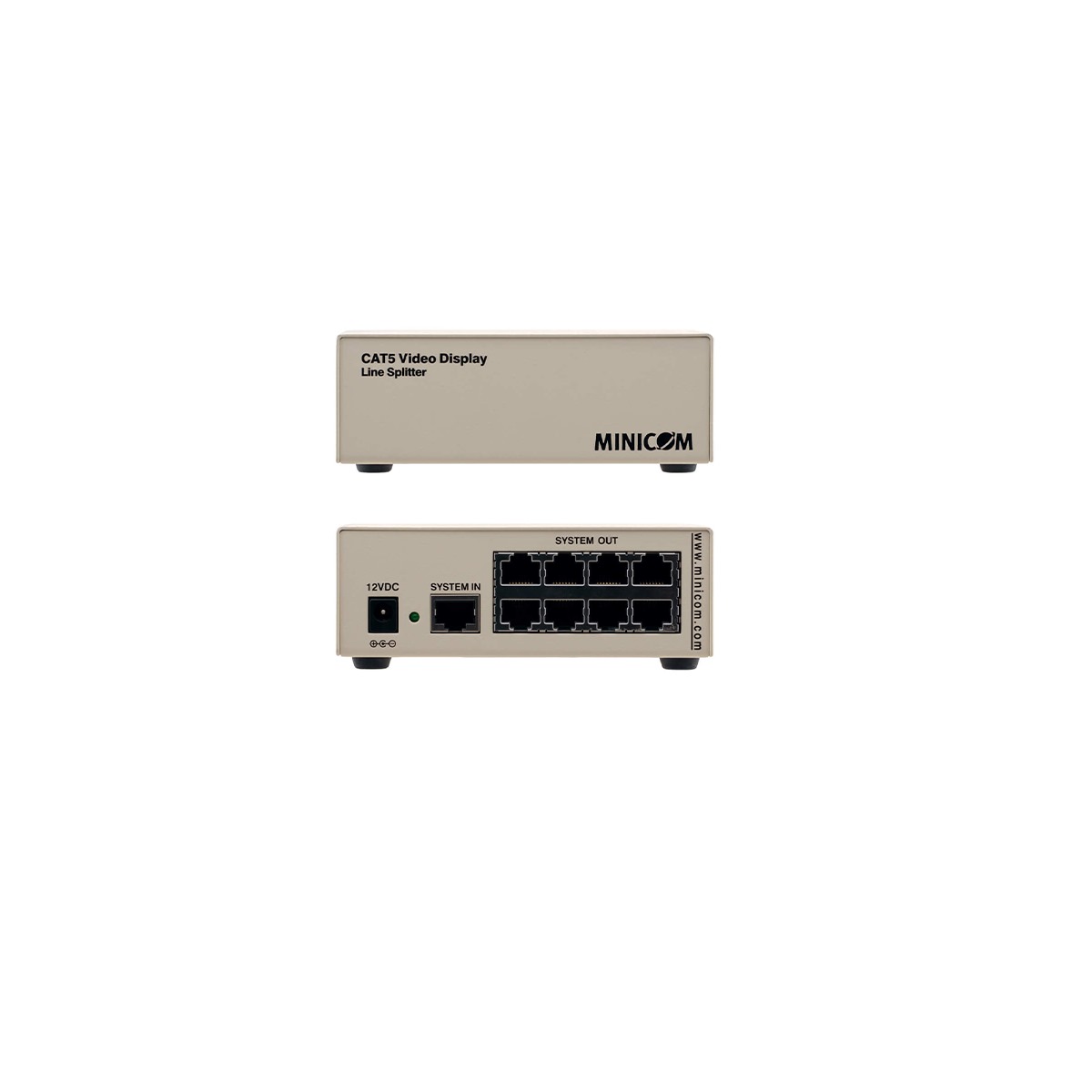

Video Display System (VDS)

Computer Graphics Video over Twisted Pair Broadcaster, Splitter & Receiver

Highlights

Max Resolution — 1080p.
System Range — 110m (360ft), 250m (820ft).
Cost Efficient Transmission — Transmit to two back–to–back screens via a single (dual screen) remote.
Out–of–Band System — For fast image transfer.
Local PC Input — On remote for classroom control applications.
Power Over CATx — No need for power supply at the remote side.
No Player or Computer Needed at Display End.
Optional Remote — On/off screen control.

Download
