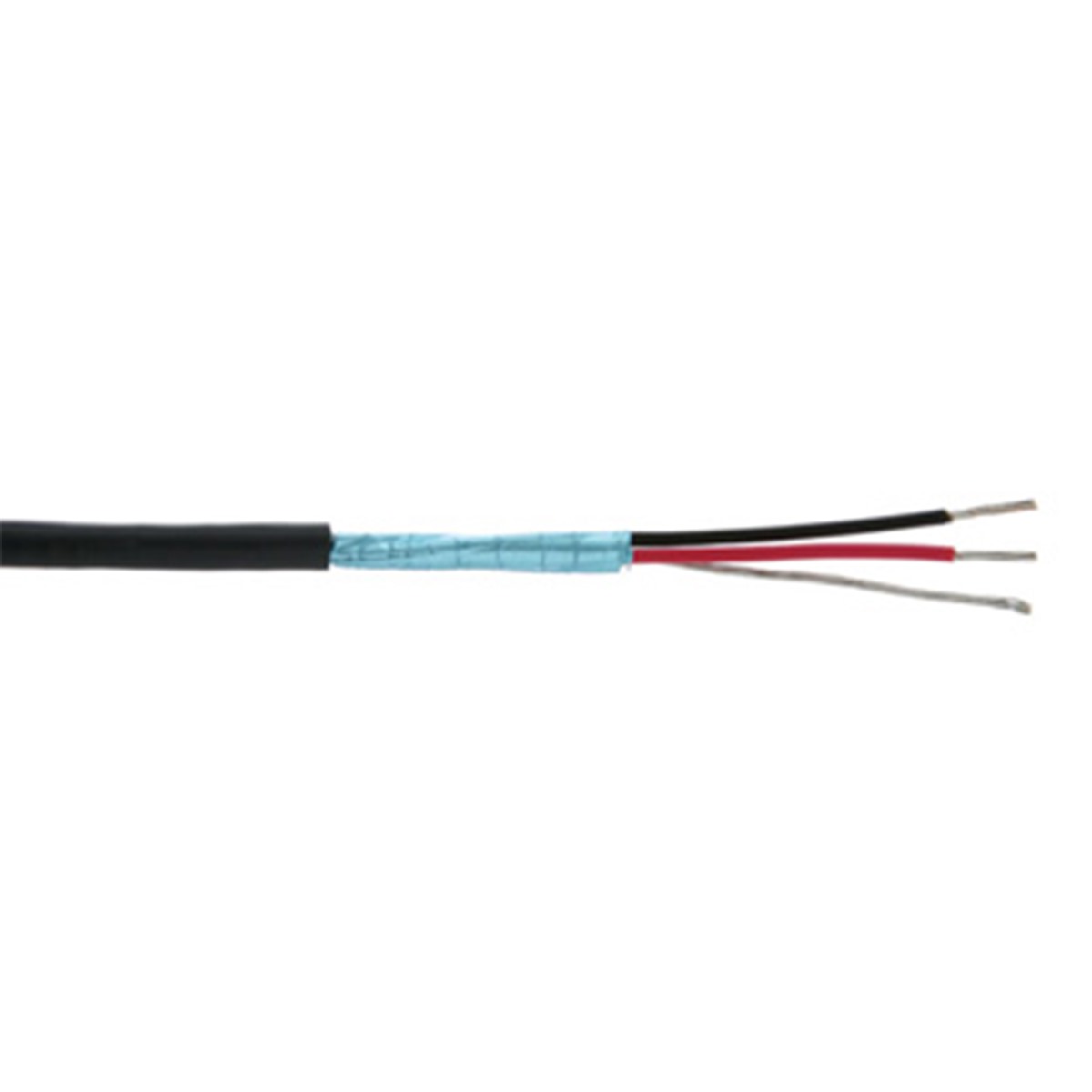

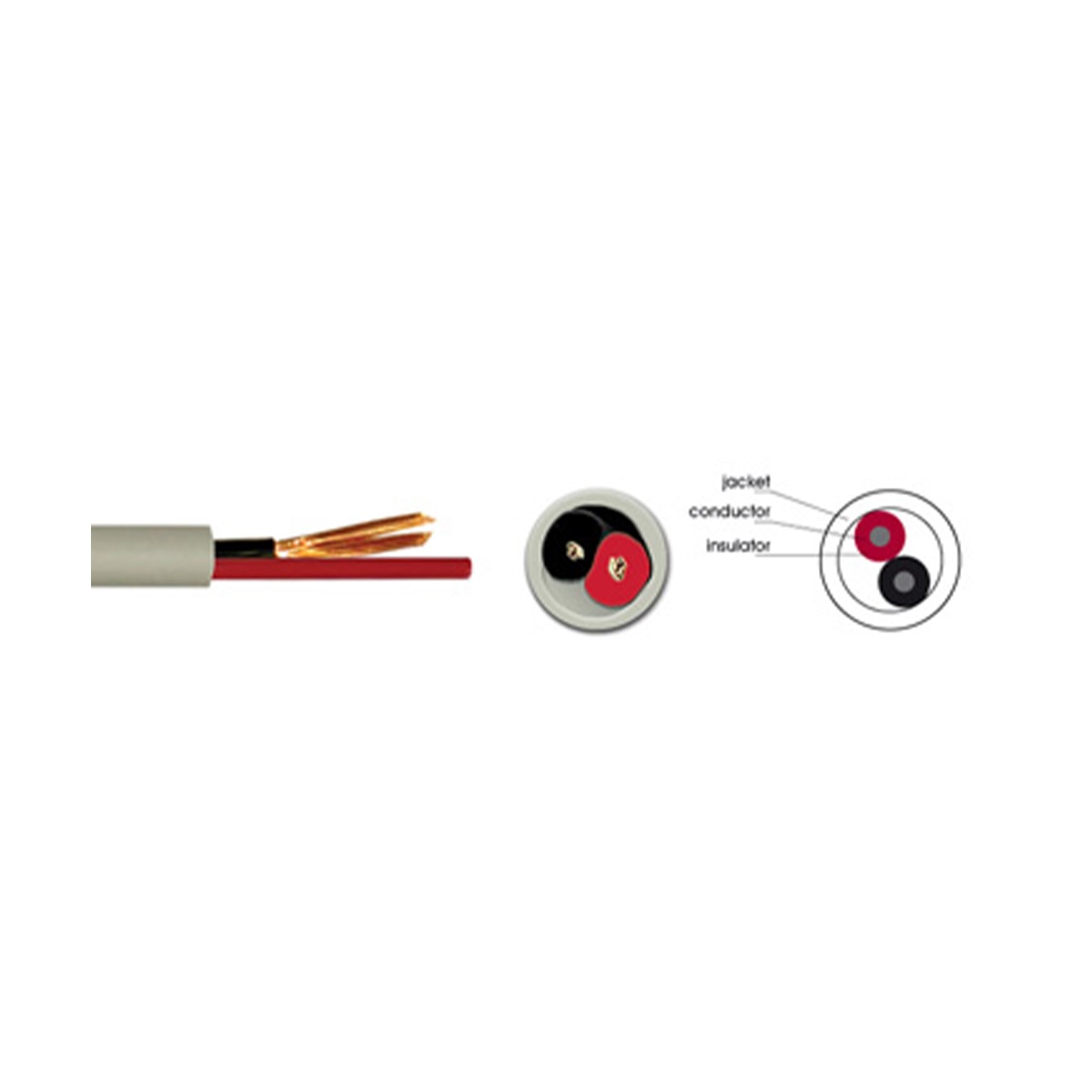

Quality Construction — Conductors are stranded 16AWG copper and the conductor jackets are color–coded red/black. Rugged and flexible jacket with sequential markings every meter. Low capacitance due to high strand count, 26/30.

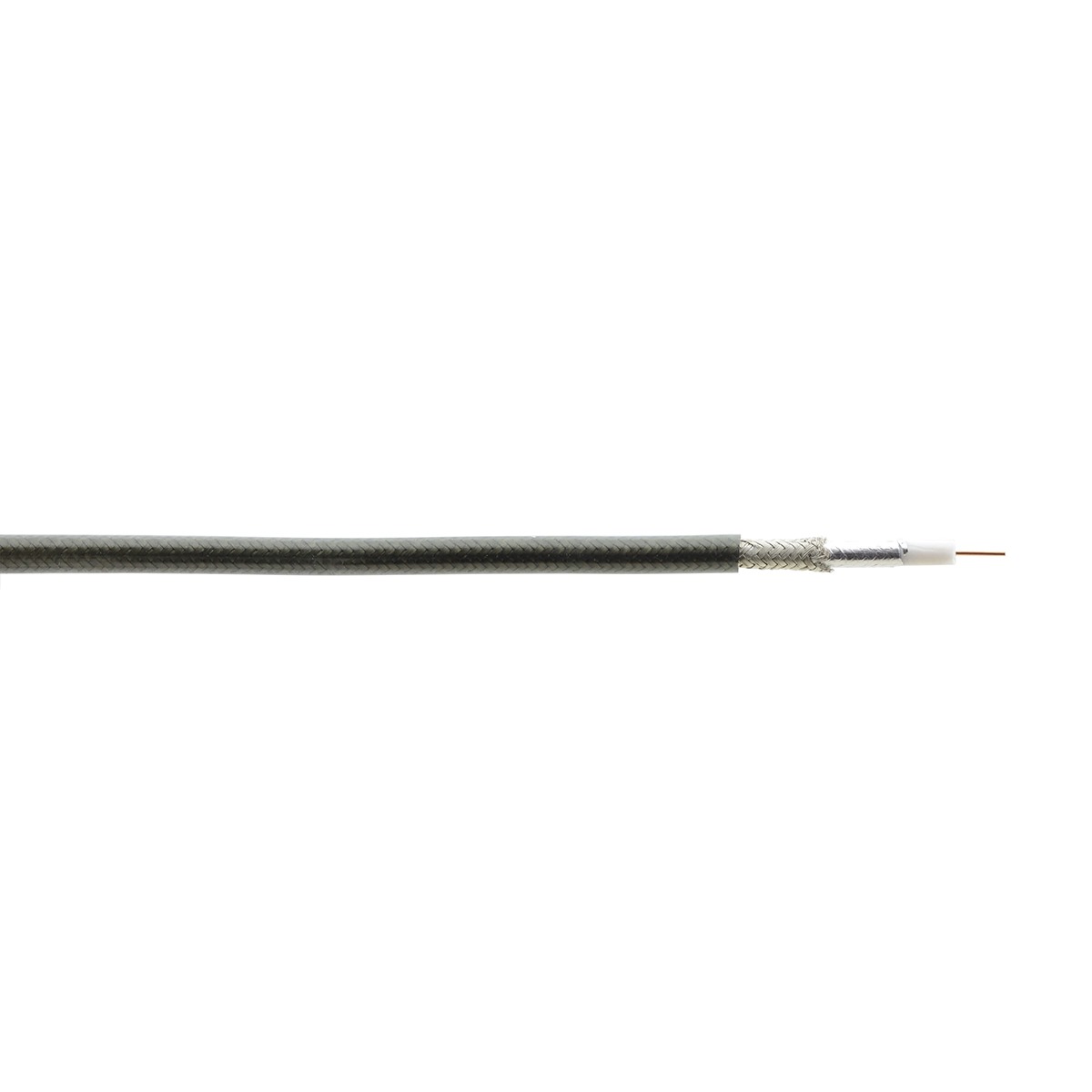

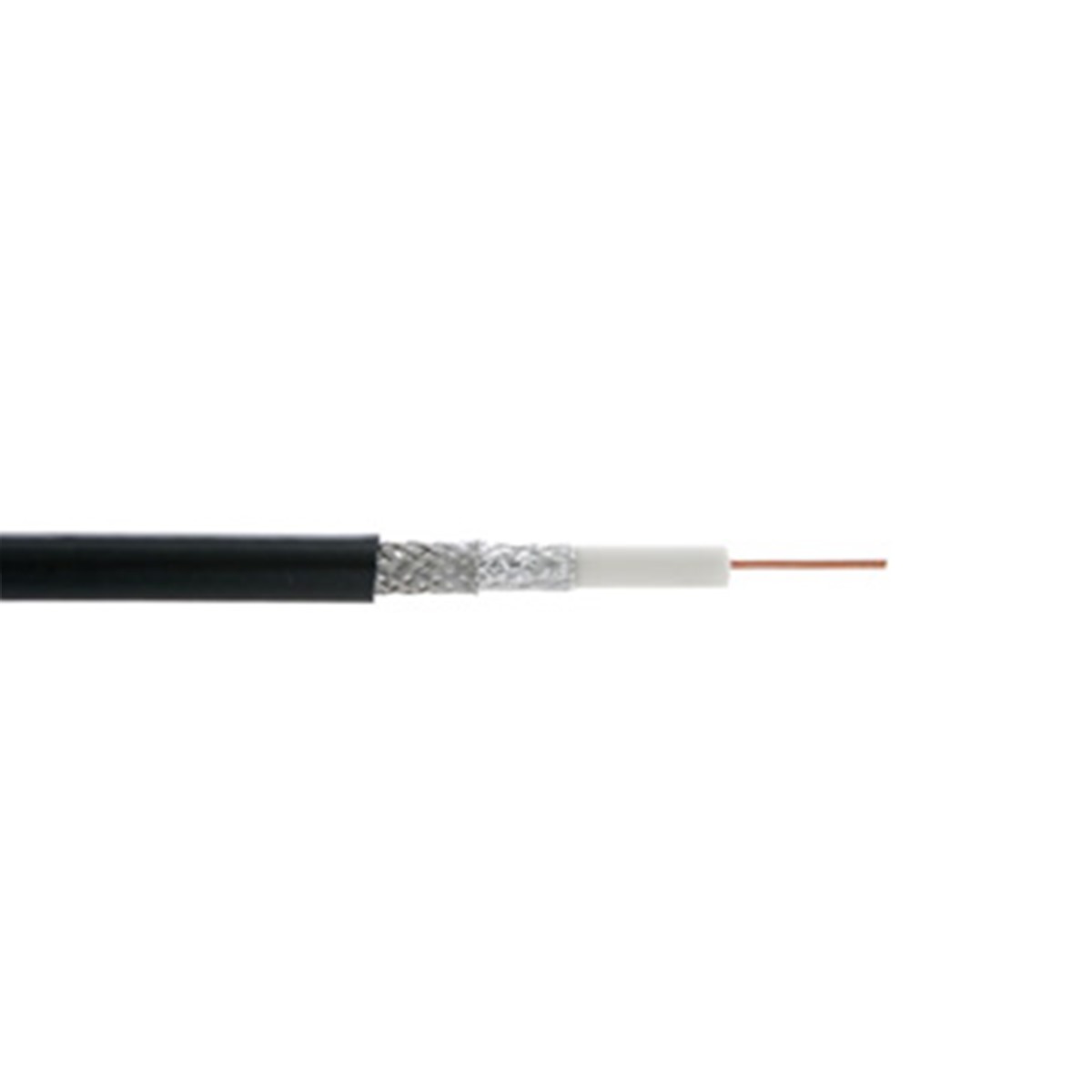

Quality Construction — 18AWG solid center conductor and dual shield design consisting of aluminum braid and dual aluminum Mylar foil. Rugged and flexible with low attenuation. Tested to 3G.
Universal Compatibility — Compatible with Kramer’s compression connectors as well as typical crimp systems.
Length — Available in reels of 152/305m (500/1000ft).
Quality Construction — 18AWG solid center conductor and dual shield design consisting of aluminum braid and dual aluminum Mylar foil. Rugged and flexible with low attenuation.
Universal Compatibility — Compatible with Kramer’s compression connectors as well as typical crimp systems.
Length — Available in reels of 100/300m (328/984ft).
Quality Construction — Each coax has a 26AWG center conductor and dual shield design consisting of copper braid and aluminum Mylar foil. Rugged and flexible jacket with internal rip cord and sequential markings every meter. Coax dielectrics are color–coded red, green, blue.
High Resolution — Supports higher resolution and longer distances than 28AWG versions.

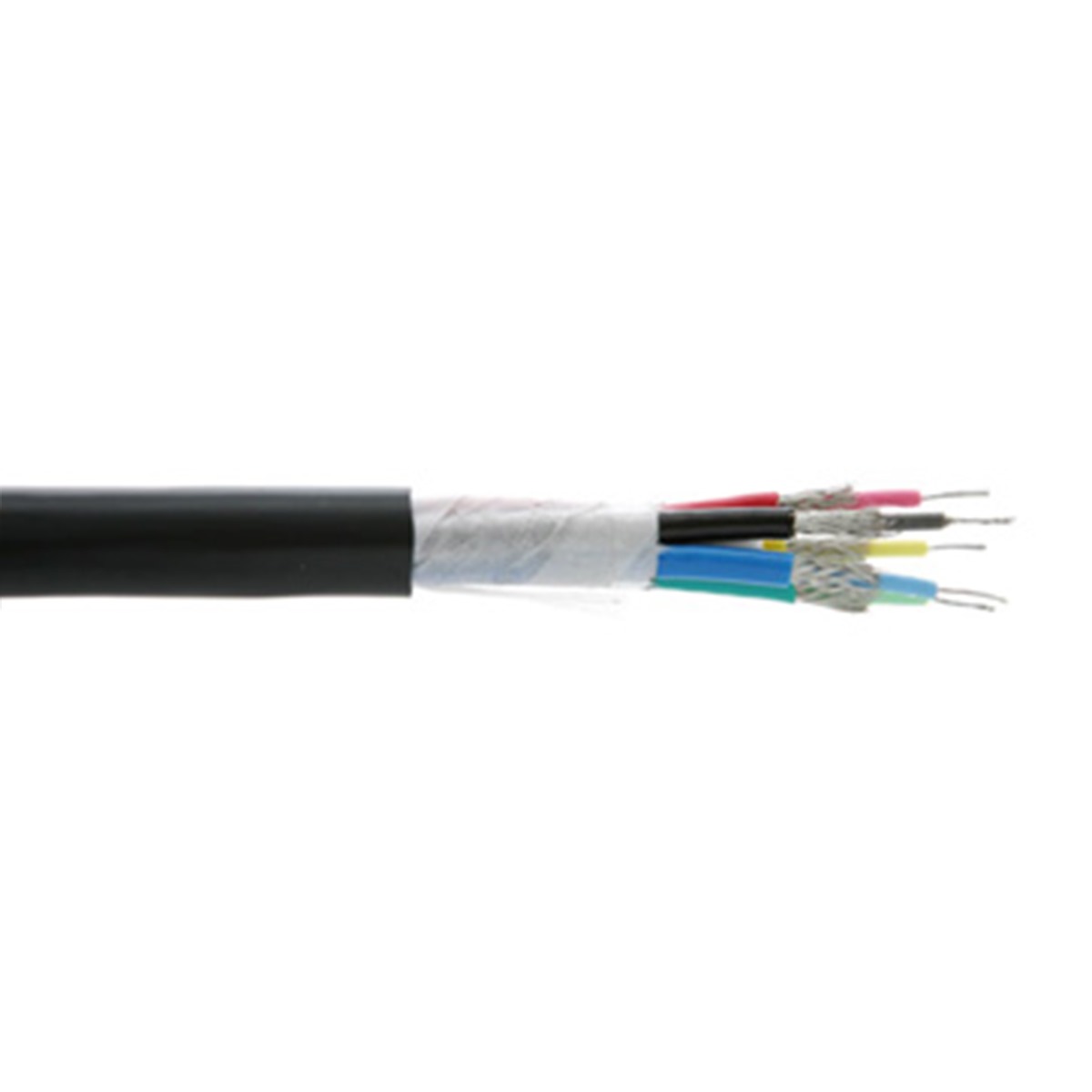

Quality Construction — Each coax has a 28AWG center conductor and copper braid shield. Coax jackets are color–coded red, green, blue, yellow, black. Rugged and flexible jacket with internal rip cord and sequential markings every meter.
Universal Compatibility — Compatible with Kramer’s compression connectors as well as typical crimp systems.
Length — Available in reels of 100/300m (328/985ft).

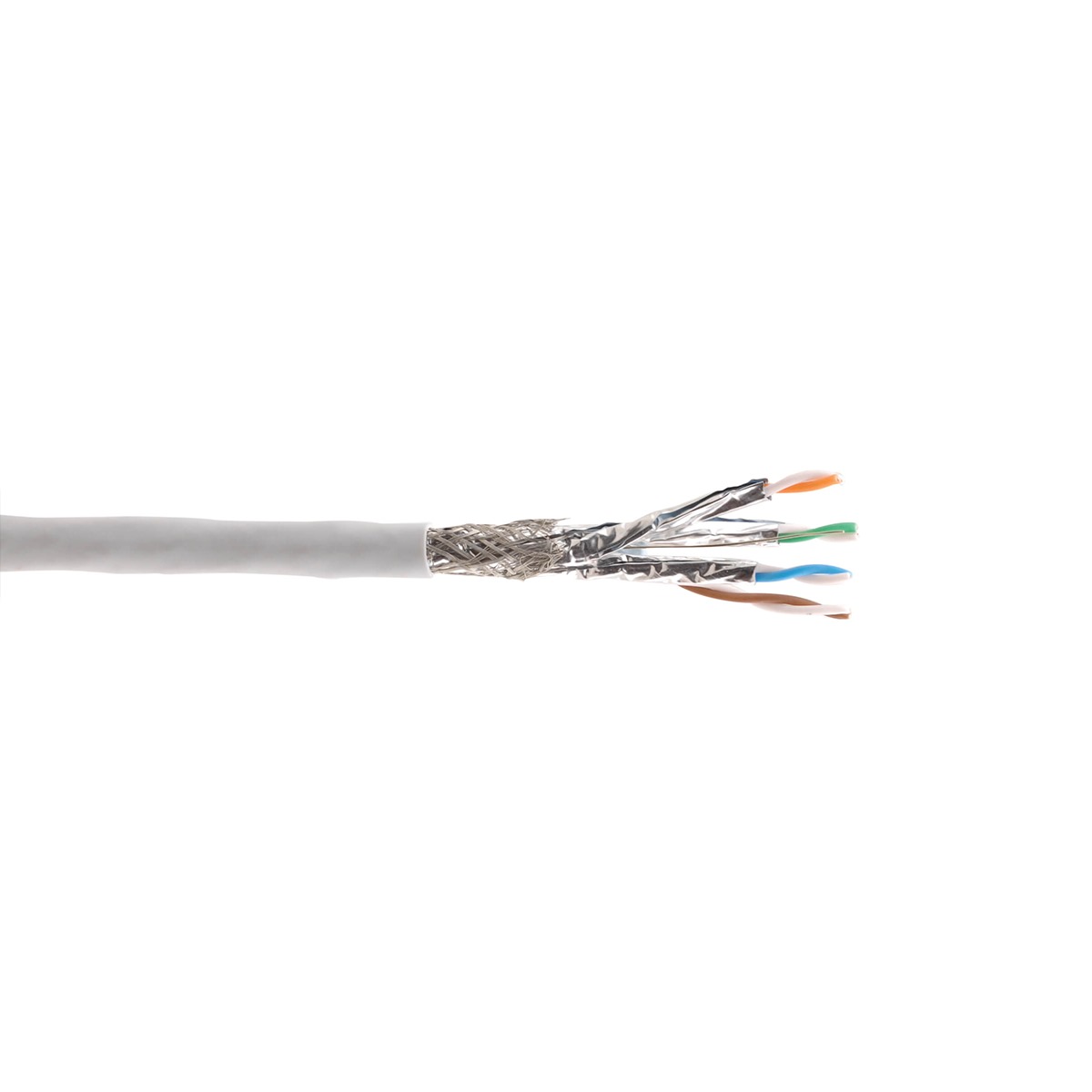

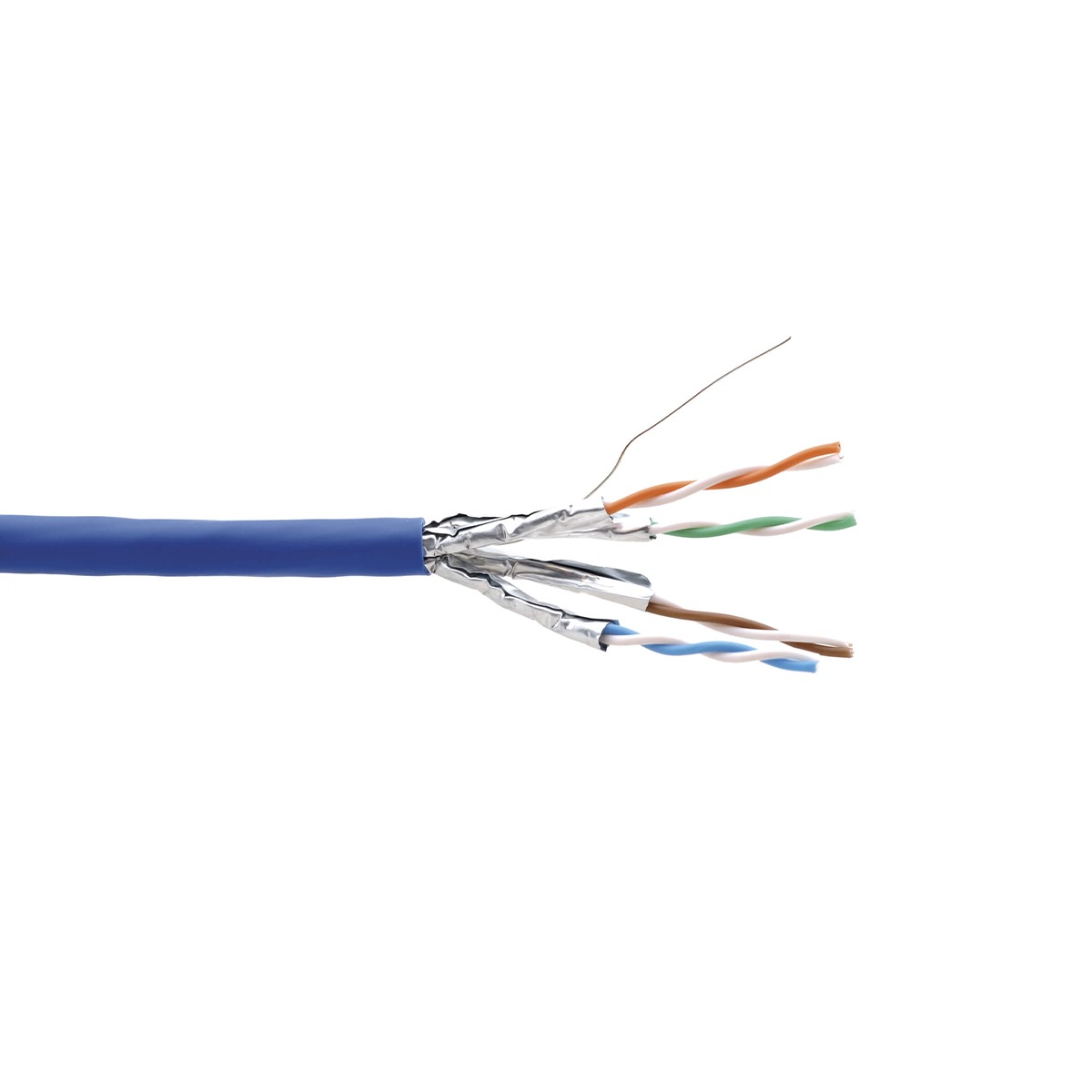

BC-DGKat7a23 Four–Pair CAT 7a S/FTP Data Bulk Cable
Four–Pair CAT 7a S/FTP Data Bulk Cable (23AWG)
Highlights
Quality Construction — 4 individually aluminum–foil shielded twisted pairs (S/FTP), cabled with a drain conductor and overall braid–shielded.
Optimized for Kramer Hardware — Use with any of Kramer’s wide range of twisted pair digital transmitter–receiver sets. Terminate with shielded RJ–45 connectors.
Length — Available in pull boxes of 100/305m (328/1000ft).

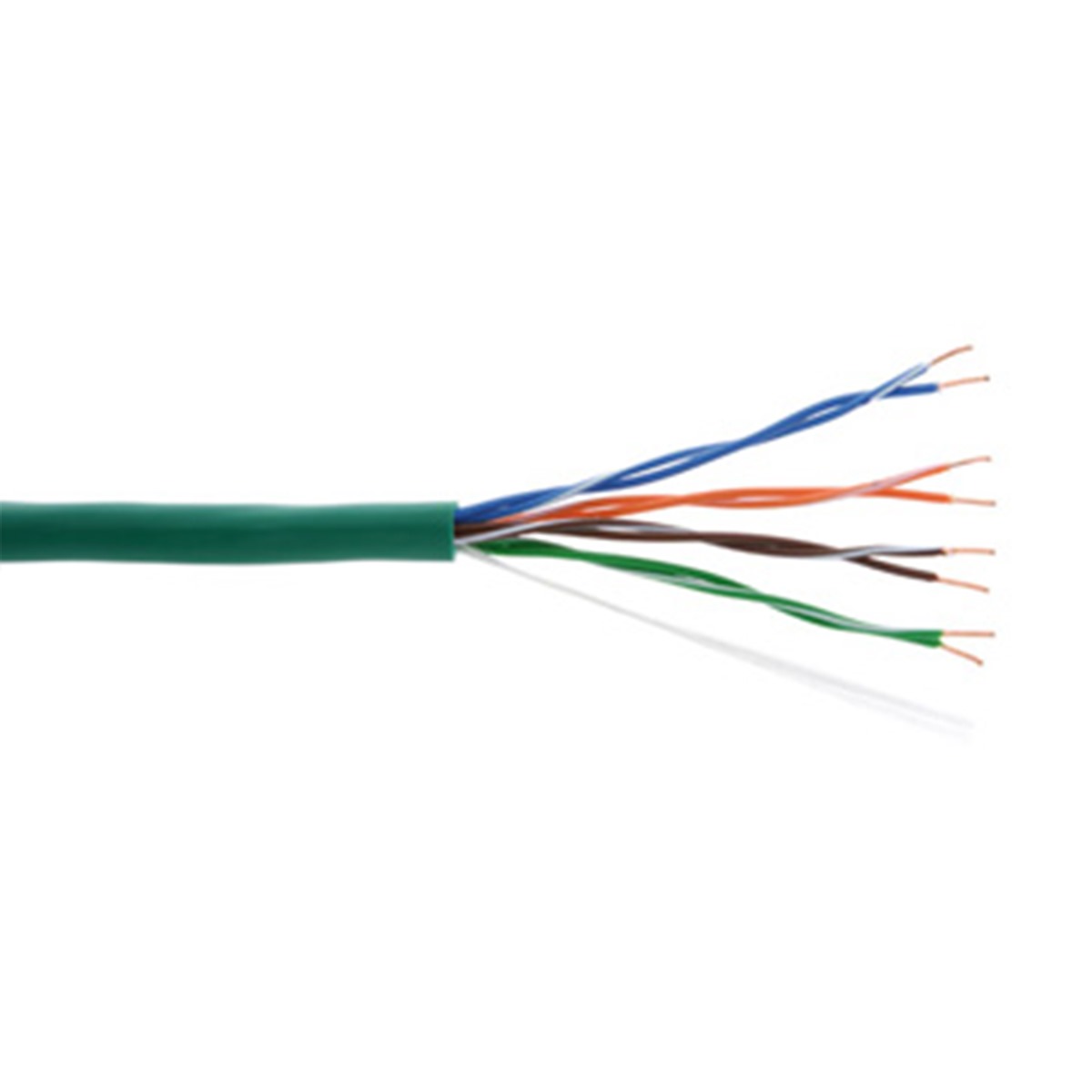

Quality Construction — Durable and flexible bulk cable. Four pairs of 24AWG solid copper.
Optimized for High–res Video/Audio Signals — Four pairs are twisted at the same ratio so the actual length of each is identical. Video shift or “skew” is eliminated in long runs because the RGB color signals arrive at the same time. Note that BC–XTP is not suited for high–speed data or network applications.
Optimized for Kramer Hardware — Use with any of Kramer’s wide range of twisted pair transmitter–receiver sets such as PT–110/PT–120, WP–110/PT–120, etc. Terminate with RJ–45 connectors, or strip and attach to terminal strips or punchdown blocks as needed.
Length — Available in pull boxes of 100/300m (328/985ft).

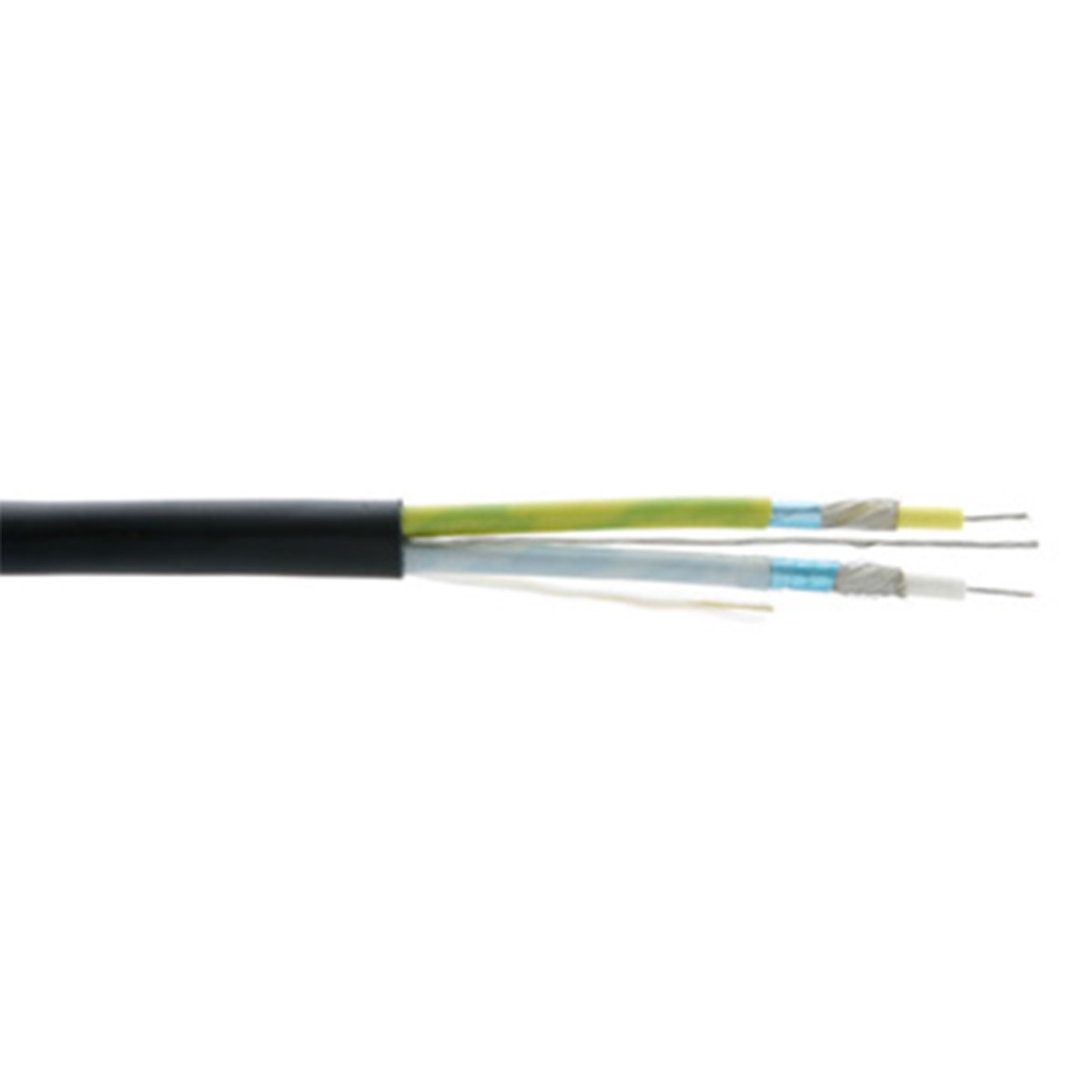

BC-2X 2 Mini Coax High–Resolution s–Video Bulk Cable
2 Mini Coax High–Resolution s–Video Bulk Cable
Highlights
Quality Construction — Each coax has a 26AWG center conductor and dual shield design consisting of copper spiral and Mylar/foil. Rugged and flexible with low attenuation.
Universal Compatibility — Compatible with Kramer’s compression connectors as well as typical crimp system and 4–pin s–Video connectors.
Length — Available in reels of 100/300m (328/985ft).

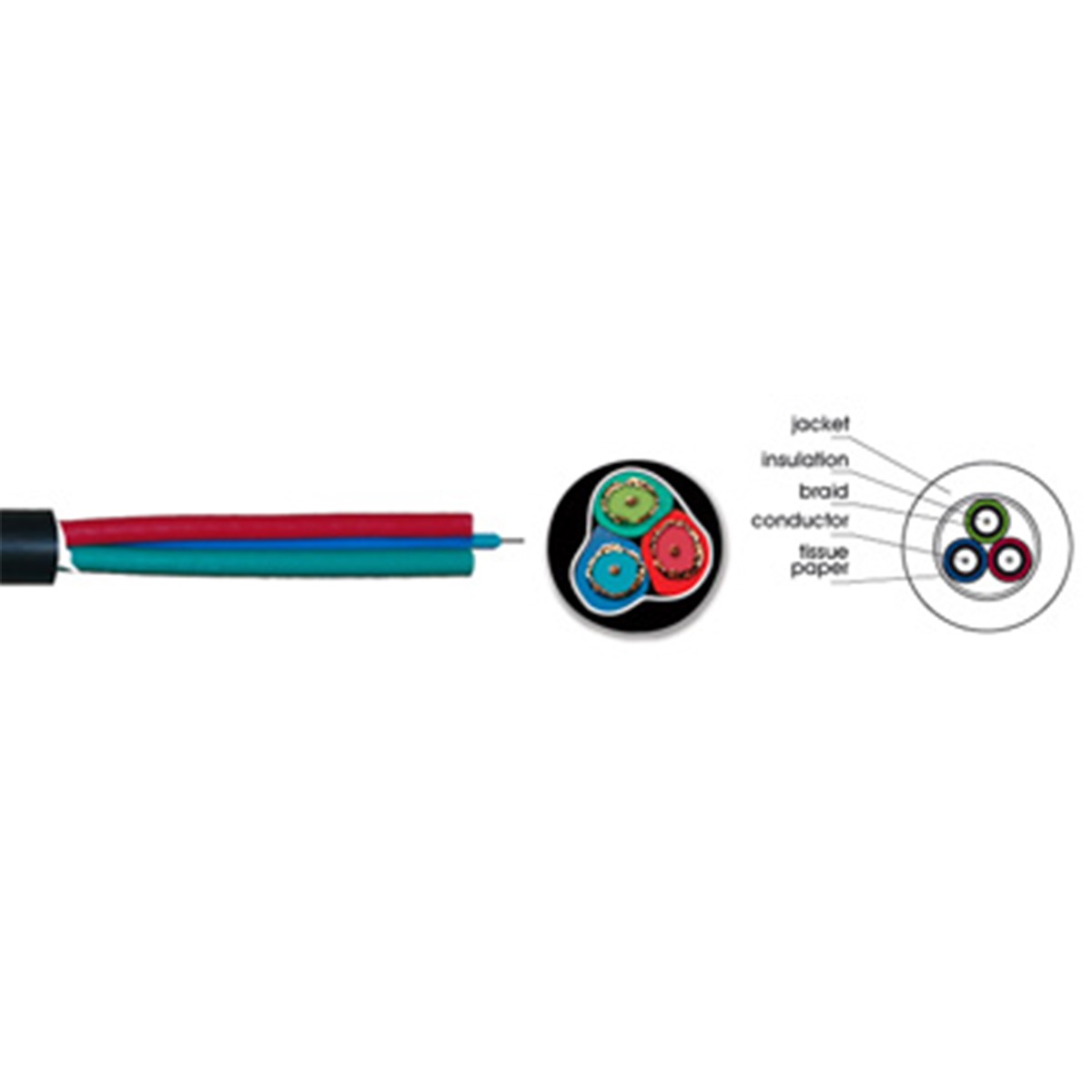

Quality Construction — Each coax has a 28AWG center conductor and dual shield design consisting of copper braid and aluminum Mylar foil. Coax jackets are color–coded red, green, blue. Rugged and flexible with low attenuation.
Universal Compatibility — Compatible with Kramer’s compression connectors as well as typical crimp systems.
Quality Construction — 4 shielded twisted pairs (U/FTP) of 23AWG solid copper conductors are cabled together in an unshielded outer jacket.
Optimized for Kramer Hardware — Use with any of Kramer’s wide range of twisted pair digital transmitter–receiver sets. Terminate with shielded RJ–45 connectors.
RJ–45 Connector — The larger diameter 23AWG twisted pair cable requires a special RJ–45 connector. Use the Kramer CCR–RJ45–TP6.
Length — Available in pull boxes of 100/305m (328/1000ft).
Quality Construction — Each coax has a 28AWG center conductor and copper braid shield. Coax jackets are color–coded red, green, blue, black. Rugged and flexible with low attenuation.
Universal Compatibility — Compatible with Kramer’s compression connectors as well as typical crimp systems.
High–Speed Active Cable — Delivers up to 4K@60Hz (4:2:0) resolution and up to 10.2Gbps data rate.
High–Level Signal Security — Cable limits signal to one–way transmission.
Pre–defined EDID.
HDMI Support — deep color and x.v.Color™, 5.1/7.1 lossless Dolby® TrueHD and DTS–HD Master Audio®. Note: HDCP, CEC, HEAC and ARC are not supported.
High–quality construction — 24K gold–plated, corrosion–resistant connectors for best possible connectivity. Pull–resistant K–Lock™ with 15 lbs of restraining force. 4xMM fiber in a 3.4mm TPU jacket.
